FBGSS

FBGSS

Stainless steel base for sealed swivel feet

Stainless steel base for sealed swivel feet
Stainless steel 304 (1.4301)
Anti-slip plate: TPE*, ligth grey ˜ RAL 7035

Categorias: , .

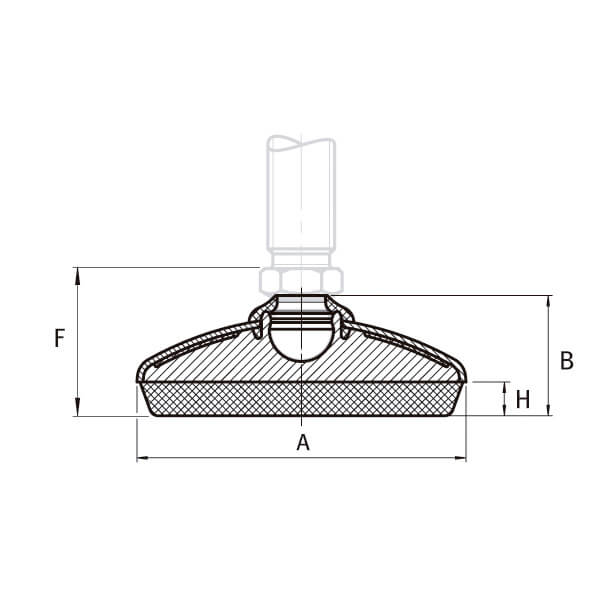

Ref. Base - Base - Embase - Base A B H Carga máxima (Kg) - Max. Load (kg) - Capacité de charge (kg) - Carga máxima (kg) g
FBGSS-60 60 58,5 29 8 700 75
FBGSS-80 80 78,5 29 8 700 150
FBGSS-100 100 98,5 29 8 700 220

F M6-M16 M20-M30 UNC 1/4”-1/2” UNC 5/8”-2/4” UNC 1”-1 1/4”
35,0 38,0 35,0 38,0 39,0

Carga máxima (Kg) - Max. Load (kg) - Capacité de charge (kg) - Carga máxima (kg) Max. Load (kg)
Base - Base - Embase - Base Base

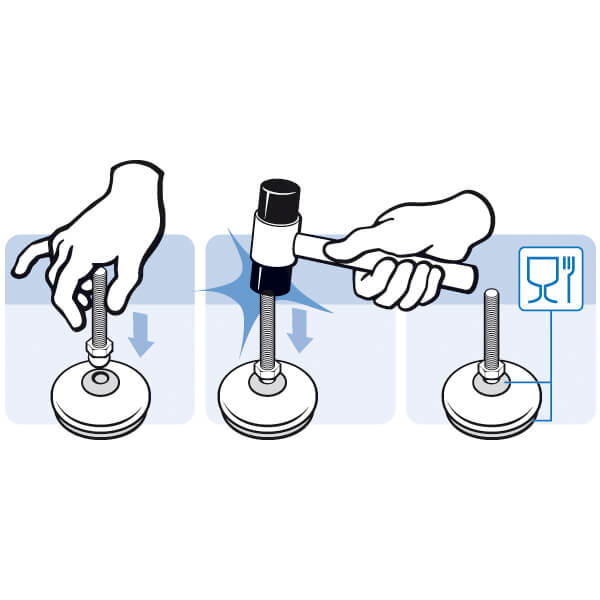

Integrated anti-slip plate model. Factory assembled leveling foot on request.
The sealing lip on this base seals up to a slope of 8 degree. It’s permitted to used greater angles (up to 20º), without sealing property. You can see example in the upper images.
