DIN 6316

DIN 6316

Goose-neck clamp

Goose-neck clamp
Steel C45
Surface: Grey powder coated

Categorias: , .

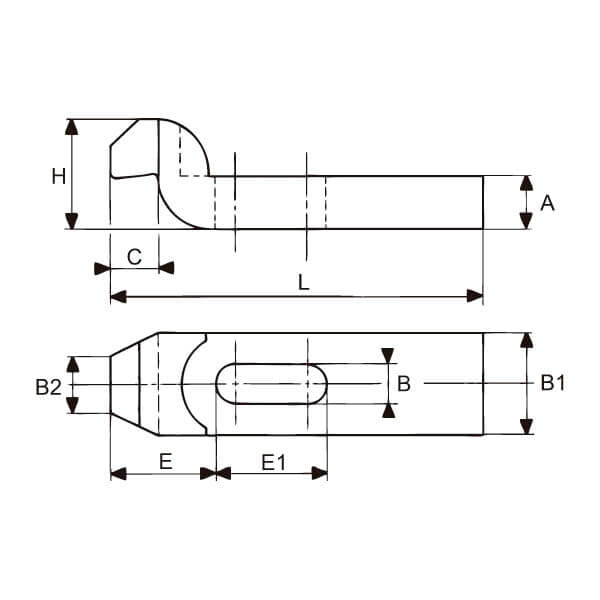

Ref. B L M A B1 B2 C E E1 H g
6316-7-60 7 60 M6 10 20 10 8 20 20 20 80
6316-9-80 9 80 M8 12 25 12 9 25 25 24 160
6316-11-100 11 100 M10 15 30 15 12 32 32 30 300
6316-14-125 14 125 M12 M14 20 40 20 16 40 40 40 680
6316-18-125 18 125* M16 M18 25 50 25 20 49 40 50 1.050
6316-18-160 18 160 M16 M18 25 50 25 20 49 50 50 1.400
6316-22-160 22 160* M20 M22 30 60 30 24 55 55 60 2.000
6316-22-200 22 200 M20 M22 30 60 30 24 55 70 60 2.400
6316-26-200 26 200* M24 35 70 35 32 72 60 70 3.400
6316-26-250 26 250 M24 35 70 35 32 72 80 70 4.300
6316-34-250 34 250* M30 40 80 40 40 91 80 80 5.400
6316-34-315 34 315 M30 50 80 40 40 91 100 100 9.000
6316-43-400 43* 400* M36 M42 60 100 50 50 105 120 120 16.400

The DIN 6316 clamps have an 8º slope on their side and this allows you to strengthen the fastening on the part that we want to use.

* Dimensions outside DIN standard.
