FBGN10

FBGN10

Nylon base for swivel feet

Nylon base for swivel feet
Glass reinforced nylon
Without bolt-down holes
Colour: Black

Categorias: , .

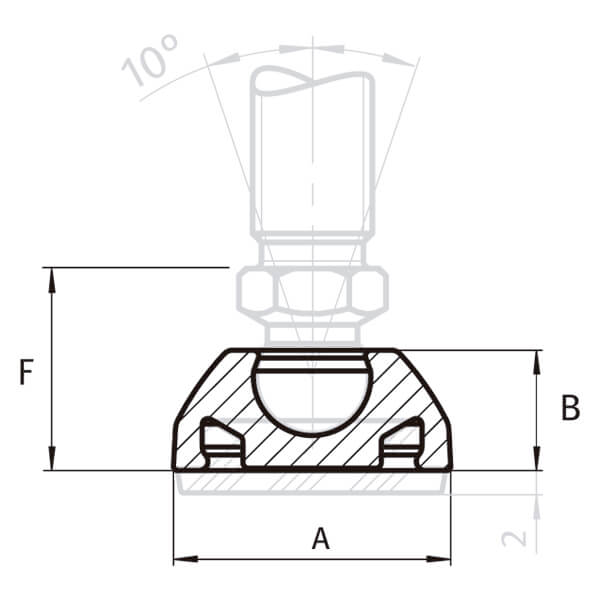

Ref. Base - Base - Embase - Base A B F Carga máxima (Kg) - Max. Load (kg) - Capacité de charge (kg) - Carga máxima (kg) g
FBGN10-20 20 19 10,4 17,5 100 2,0
FBGN10-25 25 24 10,4 17,5 200 3,0
FBGN10-30 30 29 10,4 17,5 350 4,5
FBGN10-40 40 39 10,4 17,5 500 8,0

Carga máxima (Kg) - Max. Load (kg) - Capacité de charge (kg) - Carga máxima (kg) Max. Load (kg)
Base

Specials such as other sizes, other colors, electrostatically conductive bolt-on or glued anti-slip plate as factory assembled leveling foot on request.

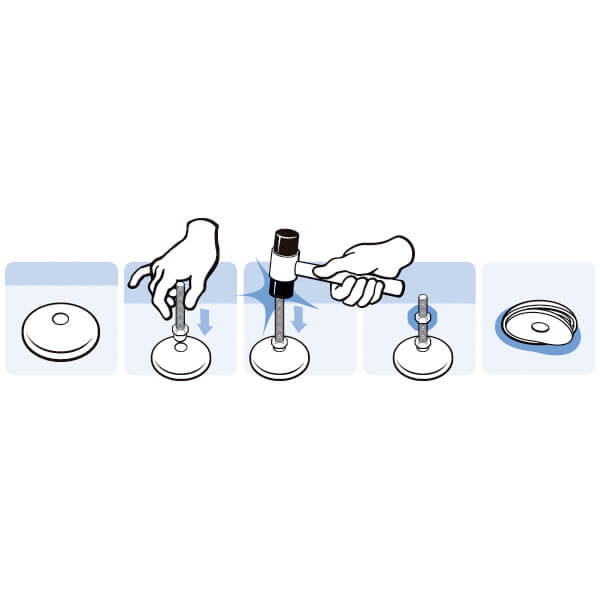

You can display an example of mounting on the top images.
