FBPAZ

FBPAZ

Die-cast zinc base for leveling feet

Die-cast zinc base for leveling feet
With bolt-down holes
Surface: Black powder coated

Categorias: , .

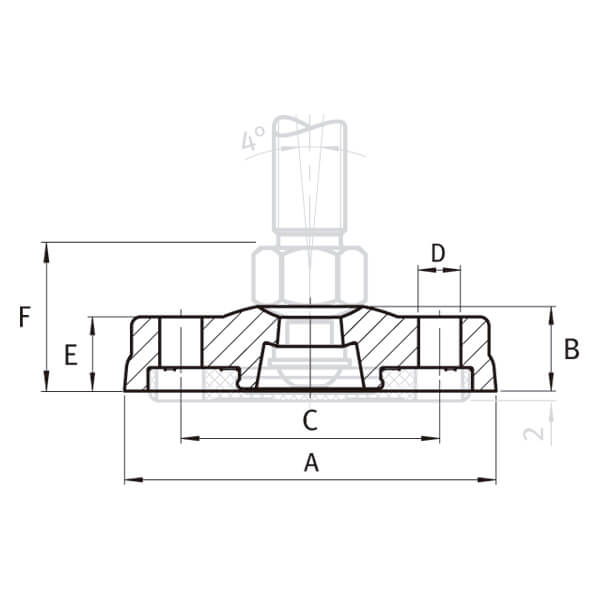

Ref. Base - Base - Embase - Base A B C D E F Carga máxima (Kg) - Max. Load (kg) - Capacité de charge (kg) - Carga máxima (kg) g
FBPAZ-60 60 59 18 40 9 11,5 31 3.000 157
FBPAZ-80 80 79 18 55 9 11,5 31 3.500 256
FBPAZ-100 100 99 18 74 9 11,5 31 3.500 277
FBPAZ-120 120 119 18 94 9 11,5 31 3.500 580

Base
Max. Load (kg)

Specials such as other sizes, other colors, other surfaces and bolt-on or glued anti-slip plate as factory assembled leveling foot on request.

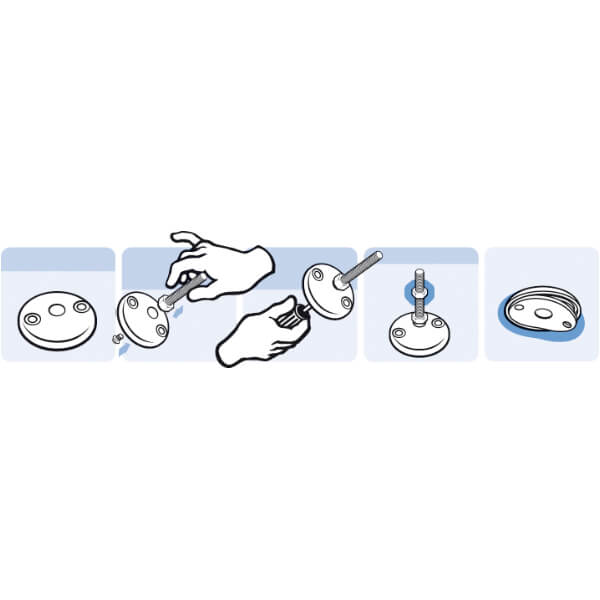

You can display an example of mounting on the top images.
