Duck foot with threaded rod

Duck foot with threaded rod
Die-cast aluminium
Cover cap: Plastic LDPE, grey
With bolt-down hole
Colour: Black

Categorias: , .

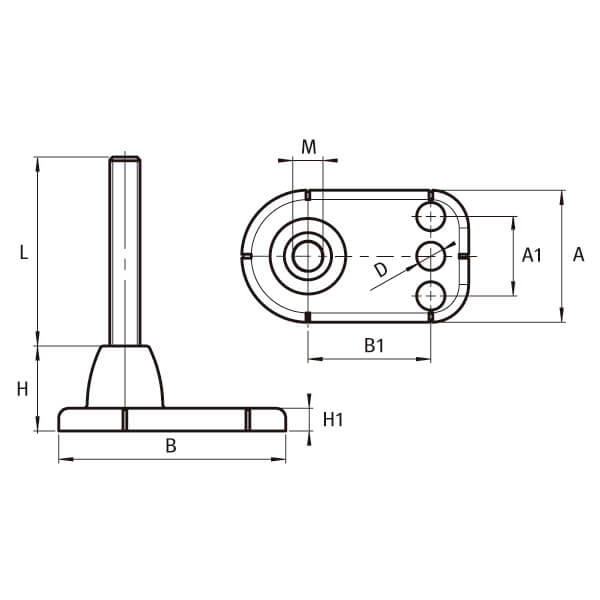

Ref. M L A A1 B B1 D H H1 Carga máxima (Kg) - Max. Load (kg) - Capacité de charge (kg) - Carga máxima (kg) g
FPDAL-16-100 M16 100 70 - 119,5 65 15 45 12 400 452,6
FPDAL-16-150 M16 150 70 - 119,5 65 15 45 12 400 518,1
FPDAL-16-200 M16 200 70 - 119,5 65 15 45 12 400 581,1
FPDAL-16-250 M16 250 70 - 119,5 65 15 45 12 400 648,1
FPDAL-16-300 M16 300 70 - 119,5 65 15 45 12 400 713,6
FPDAL-20-150 M20 150 90 55 139,5 75 15 50 12 600 900,0
FPDAL-20-200 M20 200 90 55 139,5 75 15 50 12 600 1.023,4
FPDAL-20-250 M20 250 90 55 139,5 75 15 50 12 600 1.146,7
FPDAL-20-300 M20 300 90 55 139,5 75 15 50 12 600 1.270,0
FPDAL-20-400 M20 400 90 55 139,5 75 15 50 12 600 1.516,6
FPDAL-24-150 M24 150 110 70 159,5 85 15 55 12 1.000 1.286,4
FPDAL-24-200 M24 200 110 70 159,5 85 15 55 12 1.000 1.464,0
FPDAL-24-250 M24 250 110 70 159,5 85 15 55 12 1.000 1.641,6
FPDAL-24-300 M24 300 110 70 159,5 85 15 55 12 1.000 1.819,1
FPDAL-24-400 M24 400 110 70 159,5 85 15 55 12 1.000 2.174,2

Max. Load (kg)

A strong and cost-efficient leveling foot commonly used for conveyor systems.
Caps are sold separately in sets of 3. (ref. FBDALT-15).
You can display an example of mounting on the top images.
