FPAL

FPAL

Adjustable leveling foot

Adjustable leveling foot
Glass reinforced nylon
Zinc plated steel mechanism
Colour: Black

Categorias: , .
Ref. h - H M B D E Carga máxima (Kg) - Max. Load (kg) - Capacité de charge (kg) - Carga máxima (kg) g
FPAL-30-8-6 30 35-50 6 M6 20,5 4,3 5 150 38
FPAL-30-8-8 30 35-50 8 M8 20,5 4,3 5 150 40
FPAL-35-8-8 35 35-50 8 M8 20,5 4,3 5 150 42
FPAL-35-10-8 35 35-50 10 M8 20,5 4,3 5 150 42
FPAL-40-8-8 40 45-65 8 M8 28,0 6,5 5 150 78
FPAL-40-10-8 40 45-65 10 M8 28,0 6,5 5 150 78
FPAL-45-8-8 45 45-65 8 M8 28,0 6,5 5 150 80
FPAL-45-10-8 45 45-65 10 M8 28,0 6,5 5 150 80
FPAL-50-8-8 50 45-65 8 M8 28,0 6,5 5 150 83
FPAL-50-10-8 50 45-65 10 M8 28,0 6,5 5 150 83

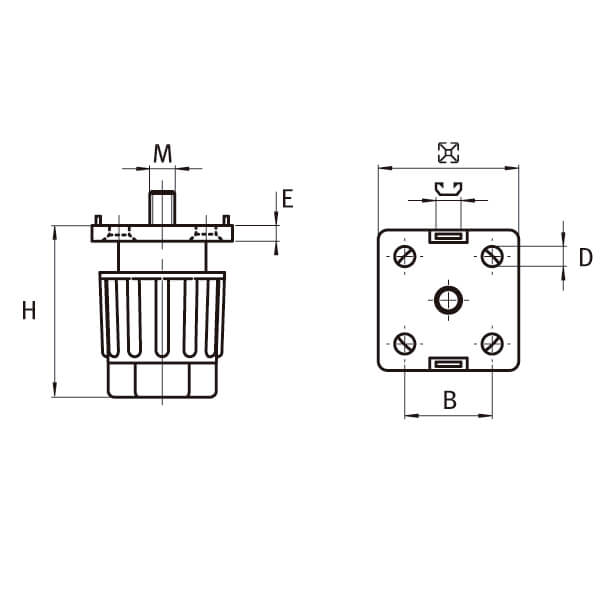

Side View
Slot
Max. Load (kg)

Leveling foot fastening to aluminium profiles, height adjustable without tool. Specials such as other sizes, other colors and electrostatically conductive on request.
Leveling feet flanges built into the side slot can be removed easily with a screwdriver or another tool so that it can be used as a universal stand

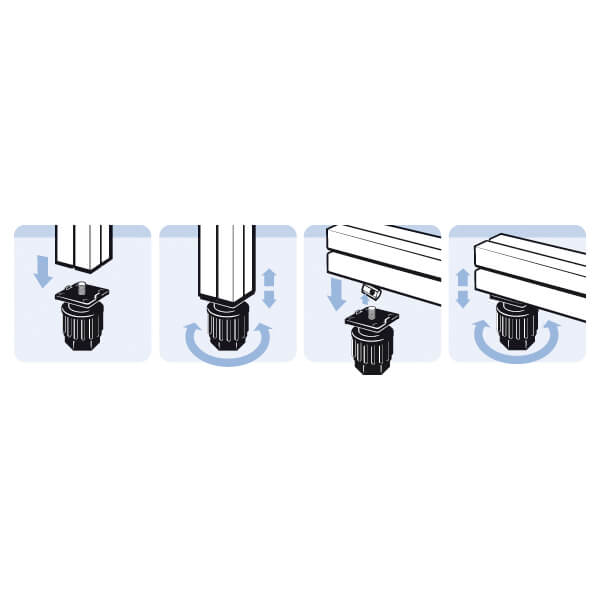

You can display an example of mounting on the top images.
