DIN 6318 - 6318 B*

DIN 6318
6318 B*

Step blocks, 50 & 80 mm. wide

Step blocks, 50 & 80 mm. wide
Cast iron
Surface: Grey powder coated

Categorias: , .

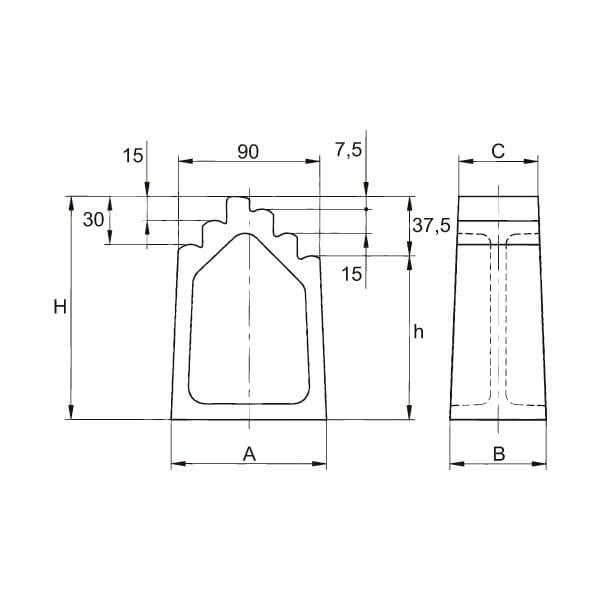

Ref. Mod. h min. H max. A B C g
6318-10 10** 12,5 50 42,5 50 50 500
6318-20 20 57,5 95 95 55 50 1.600
6318-30 30 102,5 140 100 60 50 2.000
6318-40 40 147,5 185 105 65 50 2.900
6318-50 50 192,5 230 110 70 50 3.600
6318-60 60 237,5 275 115 75 50 4.300
6318-70 70 282,5 320 120 80 50 5.200
6318B-91 91* 12,5 50 42,5 80 80 800
6318B-92 92* 57,5 95 95 85 80 2.300
6318B-93 93* 102,5 140 100 90 80 3.450

Mod. = Model

* The No. 6318 B step blocks do not correspond to the DIN 6318 standard.
50 mm maximum height for DIN 6318 and 80 mm for No. 6318 B.
** Dimensions outside DIN standard.
