Precision angle stop

Precision angle stop
Case-hardened steel
Surface: Ground

Categorias: , .

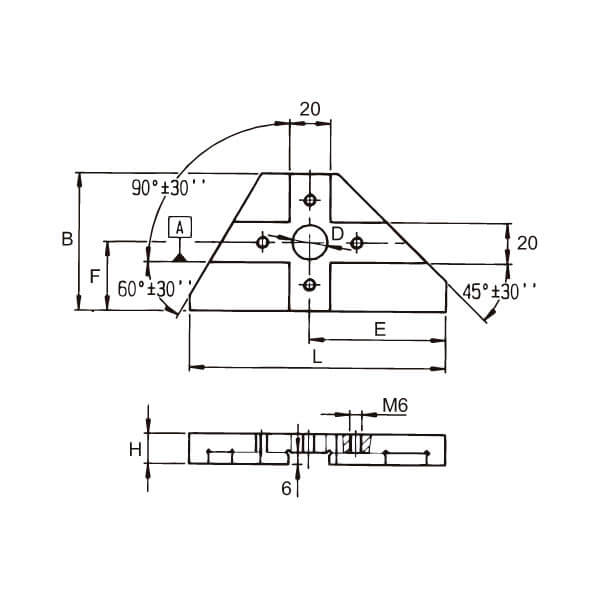

Ref. Mod. Canal - Slot - Rainure - Ranhura B D E F H L g
2922-01 01 10 - 20 68 17 66,5 34 15 125 550
2922-02 02 12 - 36 98 25 100,0 49 20 200 1.900

Slot
Mod. = Model

For quick positioning of work pieces at 30º, 45º, 60º, 90º and parallel to machine ‘T’ slot.
Universal stops guarantees the positioning accuracy requided for almost any machining job, without using any meter stop.
Using No. 6322-1 and No. 6322-2 tenons, precision angle stop is suitable for different slot sizes.
As an alternative to the tenons, this limit can be set completely with DIN 787 or with DIN 912+DIN 508+DIN 6340.

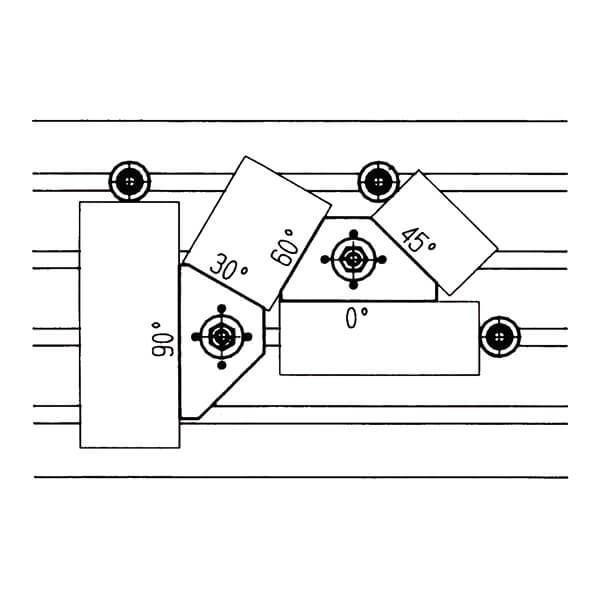

Possible combinations of precision angle stops and work angles.
