FBITN-40

FBITN-40

System Hinge 40 with cover caps

System Hinge 40 with cover caps
Material: Nylon PA, glass fibre reinforced
Colour: Black

Categorias: , .
Ref. Canal - Slot - Rainure - Ranhura FA
max.		 FR
max.		 g
FBITN-40-40F - 425 600 51
FBITN-40-40F-6 8 425 600 51
FBITN-40-40F-8 10 425 600 51

Canal - Slot - Rainure - Ranhura Slot
FA max. Maximum Axial Force (N)
FR max. Maximum Radial Force (N)

Other sizes, further colors and electrostatically conductive on request.

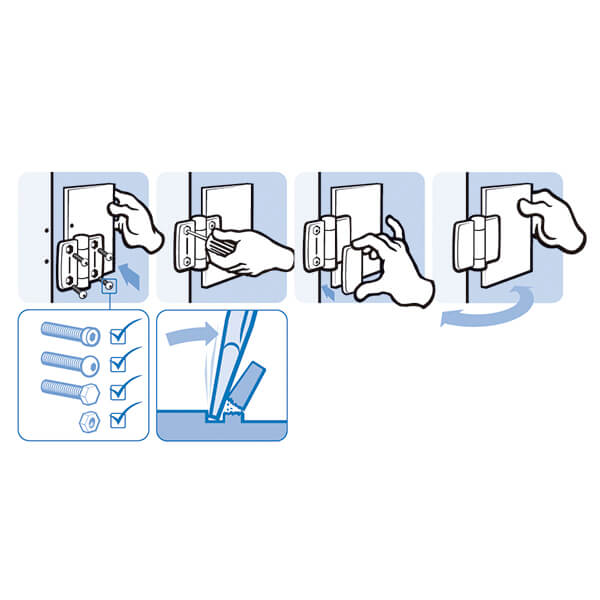

To hinge panels or aluminium profiles. Fastening is from the front, using M6 screws, from the back using hexagon nuts and bolts.
An example can be displayed in the top images.
