Combi hinge with locking lever
Combi hinge with locking lever
Material: Die-cast zinc
Locking lever: Nylon PA, glass fibre reinforced
Mechanism: Steel, zinc platted (RoHS conform)
Surface (hinge): Black powder coated
| Ref. | M |  |
A1 | A2 | FA max. |
FR max. |
g |
|---|---|---|---|---|---|---|---|
| FBICEZ-40-40F | 40/40 | - | 22,5 | 22,5 | 650 | 1.500 | 211 |
| FBICEZ-40-40F-8 | 40/40 | 8 | 22,5 | 22,5 | 650 | 1.500 | 211 |
| FBICEZ-40-40F-10 | 40/40 | 10 | 22,5 | 22,5 | 650 | 1.500 | 211 |
| FBICEZ-40-45F | 40/45 | - | 22,5 | 25,0 | 650 | 1.500 | 211 |
| FBICEZ-40-45F-8 | 40/45 | 8 | 22,5 | 25,0 | 650 | 1.500 | 211 |
| FBICEZ-40-45F-10 | 40/45 | 10 | 22,5 | 25,0 | 650 | 1.500 | 211 |
| FBICEZ-45-45F | 45/45 | - | 25,0 | 25,0 | 650 | 1.500 | 211 |
| FBICEZ-45-45F-8 | 45/45 | 8 | 25,0 | 25,0 | 650 | 1.500 | 211 |
| FBICEZ-45-45F-10 | 45/45 | 10 | 25,0 | 25,0 | 605 | 1.500 | 211 |
Slot
FA max.Maximum Axial Force (N)
FR max. Maximum Radial Force (N)

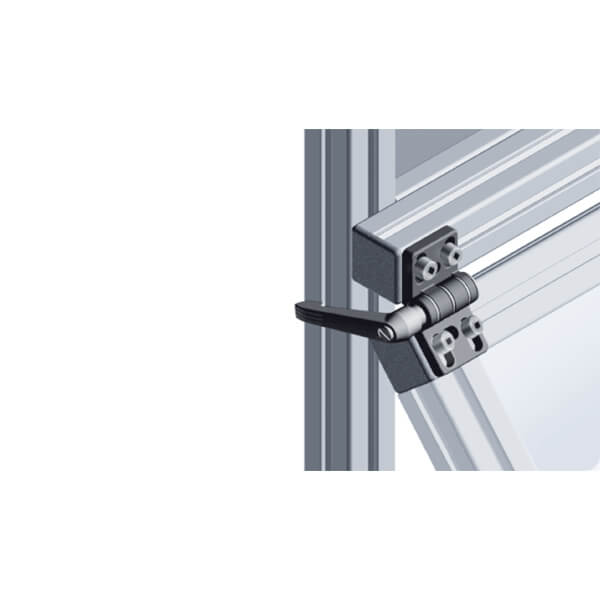

To hinge panels or aluminium profiles. Fastening is from the front, using M8 countersunk screws.
