Series HV 650

Series HV 650

Vertical handle, hold down action

Vertical handle, hold down action
Stainless steel rivets
Embossed red handle grip provided

Categorias: , .

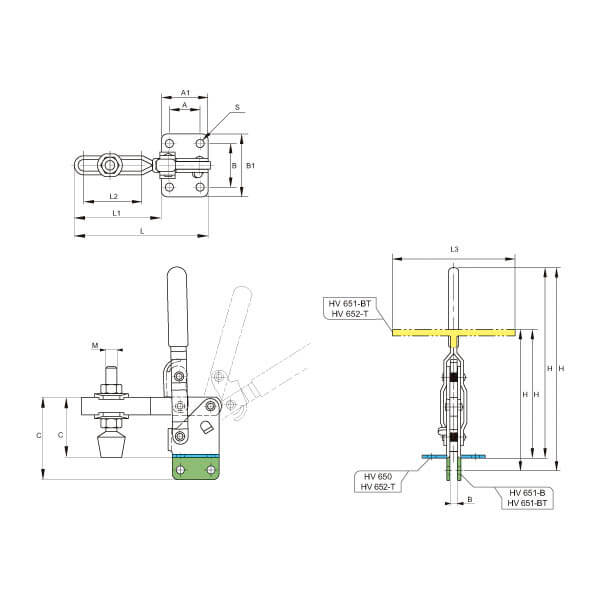

Ref. Mod. A A1 B B1 C H L L1 L2 L3 M S g
KKHV-650 HV 650 31,8 48,4 45,2 65,2 42,9 199 139,4 91 61 - M10 (x1,5) 8,4 340 Kg 660 58º 106º
KKHV-651B HV 651-B 31,8 48,4 8 - 55,6 212 139,4 91 61 - M10 (x1,5) 8,4 340 Kg 660 58º 106º
KKHV-651BT HV 651-BT 31,8 48,4 8 - 55,6 154 139,4 91 61 127 M10 (x1,5) 8,4 340 Kg 660 58º 106º
KKHV-652T HV 652-T 31,8 48,4 45,2 65,2 42,9 141 139,4 91 61 127 M10 (x1,5) 8,4 340 Kg 660 58º 106º

Mod. = Model
Holding capacity
Handle moves
Bar moves
g = Weight

Similar to the HV 550 series but with a U-bar (body is identical to the HV550 series). Supplied with bolts to adjust the pressure with a neoprene cap and two flanged washers.
Compatible with cross bar set. See accessories for further information.
