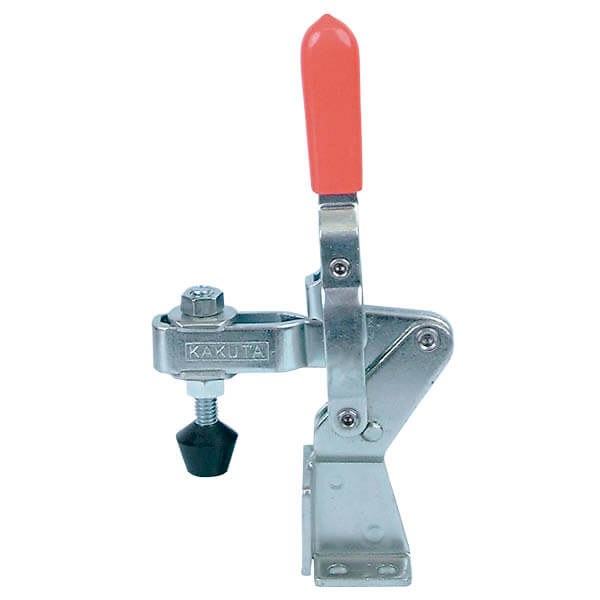

SF 350 / UF 450

SF 350 / UF 450

Hold down action, special series

Hold down action, special series
Stainless steel rivets
Embossed red handle grip provided

Categorias: , .

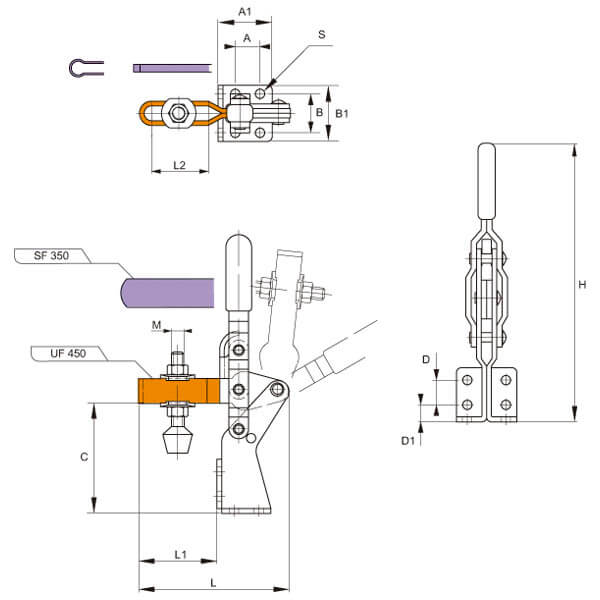

Ref. Mod. A A1 B B1 C D D1 H L L1 L2 M S g
KKSF-350 SF 350 16 35 25,4 39 70 16 11 187,2 103,0 55,0 - M8 (x1,25) 6,7 170 Kg 398 60º 96º
KKUF-450 UF 450 16 35 25,4 39 70 16 11 187,2 96,7 49,7 33,5 M8 (x1,25) 6,7 170 Kg 398 60º 96º

Mod. = Model
Holding capacity
Handle moves
Bar moves
g = Weight

Each model has two mounting areas, horizontal and vertical surfaces. SF350: Solid bar model furnished with bolt retainer and spindle assembly. UF450: U-bar model furnished with neoprene tipped hex-head spindle assemblies and two flanged washers.
