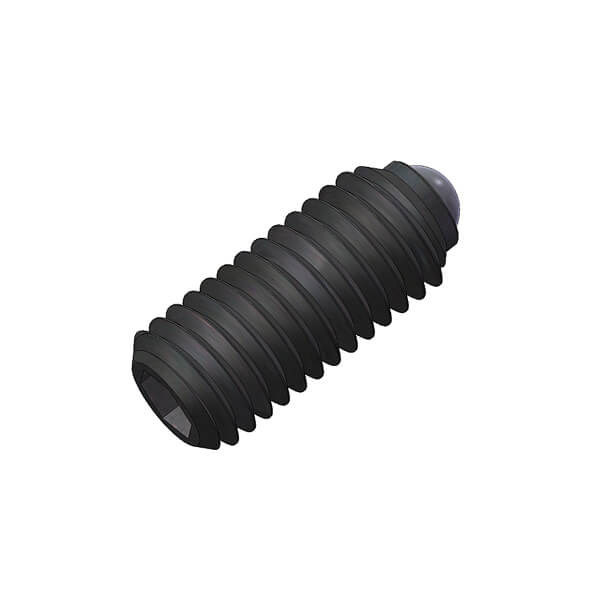

Posicionador de Bola con Hexágono Interior

Posicionador de esfera com hexágono interior
Corpo: Aço de mecanização fácil, oxidação negra
Esfera: Aço temperado

Categorías: , .

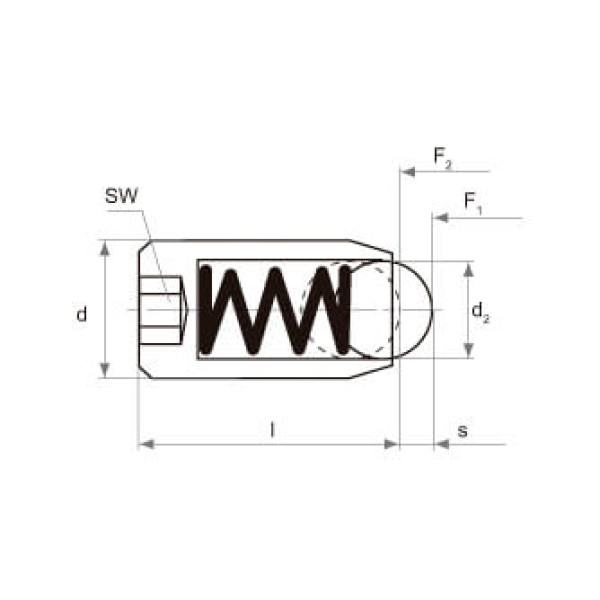

Ref. d d2 l s SW N
F1 F2
W309-3 M3 1,5 9 0,45 1,5 2,2 3
W309-4 M4 2,5 10 0,8 2,0 6 12
W309-5 M5 3,0 14 0,9 2,5 7 13
W309-6 M6 3,5 15 1,0 3,0 9 15
W309-8 M8 5,0 18 1,5 4,0 20 35
W309-10 M10 6,0 23 2,0 5,0 25 45
W309-12 M12 8,0 26 2,5 6,0 35 60
W309-16 M16 10,0 33 3,5 8,0 65 110
W309-20 M20 12,0 43 4,5 10,0 80 120
W309-24 M24 15,0 48 5,5 12,0 100 150
W309R-4 M4 2,5 10 0,8 2,0 10 20
W309R-5 M5 3,0 14 0,9 2,5 13 30
W309R-6 M6 3,5 15 1,0 3,0 24 40
W309R-8 M8 5,0 18 1,5 4,0 40 60
W309R-10 M10 6,0 23 2,0 5,0 60 90
W309R-12 M12 8,0 26 2,5 6,0 75 115
W309R-16 M16 10,0 33 3,5 8,0 115 190
W309R-20 M20 12,0 43 4,5 10,0 115 210
W309R-24 M24 15,0 48 5,5 12,0 125 240

Mola standard
Mola reforçada

Temperatura máxima de trabalho: 150ºC
Sob pedido, podemos fornecer posicionadores com pressões de mola especiais.
