321
321

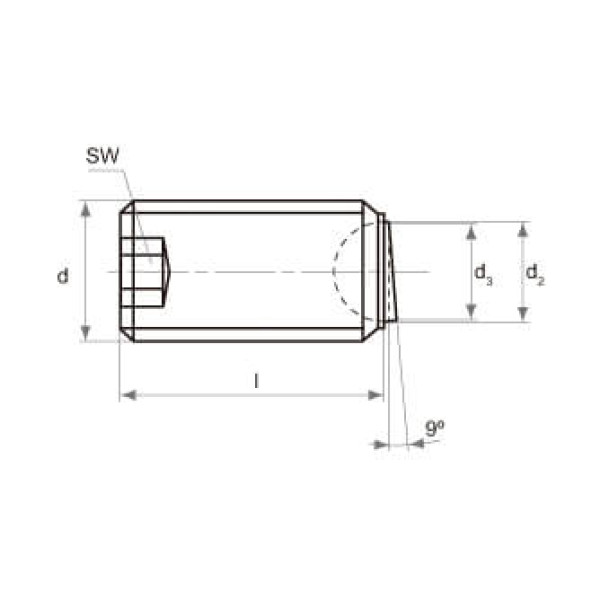

Espárrago de bola plana con hexágono interior
Pino de esfera plana com hexágono interior
Corpo: Aço temperado, oxidação negra
Esfera: Aço temperado
| Ref. | d | l | d2 | d3 | SW |
|---|---|---|---|---|---|
| W321-6-10 | M6 | 10 | 4,0 | 3,2 | 3,0 |
| W321-6-12 | M6 | 12 | 4,0 | 3,2 | 3,0 |
| W321-6-16 | M6 | 16 | 4,0 | 3,2 | 3,0 |
| W321-6-20 | M6 | 20 | 4,0 | 3,2 | 3,0 |
| W321-6-25 | M6 | 25 | 4,0 | 3,2 | 3,0 |
| W321-8-10 | M8 | 10 | 5,5 | 4,5 | 4,0 |
| W321-8-12 | M8 | 12 | 5,5 | 4,5 | 4,0 |
| W321-8-16 | M8 | 16 | 5,5 | 4,5 | 4,0 |
| W321-8-20 | M8 | 20 | 5,5 | 4,5 | 4,0 |
| W321-8-25 | M8 | 25 | 5,5 | 4,5 | 4,0 |
| W321-8-30 | M8 | 30 | 5,5 | 4,5 | 4,0 |
| W321-10-12 | M10 | 12 | 7,0 | 6,0 | 5,0 |
| W321-10-16 | M10 | 16 | 7,0 | 6,0 | 5,0 |
| W321-10-20 | M10 | 20 | 7,0 | 6,0 | 5,0 |
| W321-10-25 | M10 | 25 | 7,0 | 6,0 | 5,0 |
| W321-10-30 | M10 | 30 | 7,0 | 6,0 | 5,0 |
| W321-10-40 | M10 | 40 | 7,0 | 6,0 | 5,0 |
| W321-12-16 | M12 | 16 | 8,5 | 7,2 | 6,0 |
| W321-12-20 | M12 | 20 | 8,5 | 7,2 | 6,0 |
| W321-12-25 | M12 | 25 | 8,5 | 7,2 | 6,0 |
| W321-12-30 | M12 | 30 | 8,5 | 7,2 | 6,0 |
| W321-12-40 | M12 | 40 | 8,5 | 7,2 | 6,0 |
| W321-16-20 | M16 | 20 | 12,0 | 10,7 | 8,0 |
| W321-16-25 | M16 | 25 | 12,0 | 10,7 | 8,0 |
| W321-16-35 | M16 | 35 | 12,0 | 10,7 | 8,0 |
| W321-16-50 | M16 | 50 | 12,0 | 10,7 | 8,0 |
| W321-20-30 | M20 | 30 | 15,0 | 13,5 | 10,0 |
| W321-20-40 | M20 | 40 | 15,0 | 13,5 | 10,0 |
| W321-20-50 | M20 | 50 | 15,0 | 13,5 | 10,0 |
| W321-20-60 | M20 | 60 | 15,0 | 13,5 | 10,0 |
Sob pedido, podemos fornecer versões especiais.
