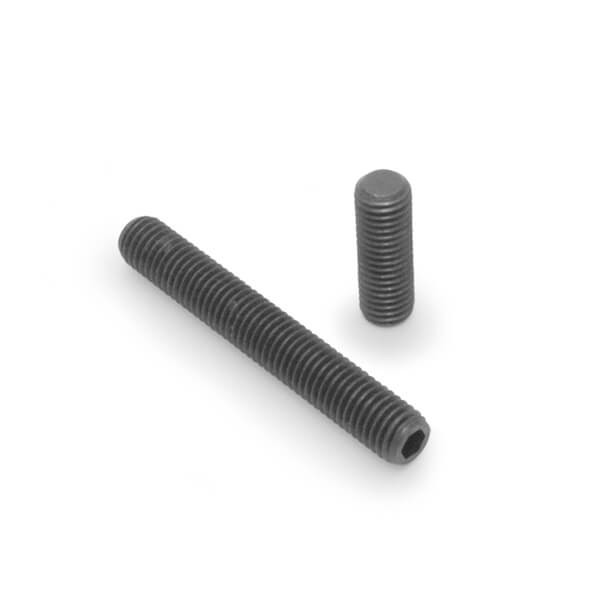

Espárrago con hexágono interior y punta hueca
Normas ASME/ANSI 18.3 - ASTM F912 - Roscas 3A
Acero aleado de alta resistencia
| Ref: ? | ||||||
|---|---|---|---|---|---|---|
| Ejemplo: | Ref. = | HEDANC | - | XX/XX | - | X XX/XX |
| ↑ | ↑ | |||||
| D | L | |||||
| 3/8 x 1" 1/4 | ||||||
| Ref. = | HEDANC | - | 3 - 8 | - | 1 - 1 - 4 | |

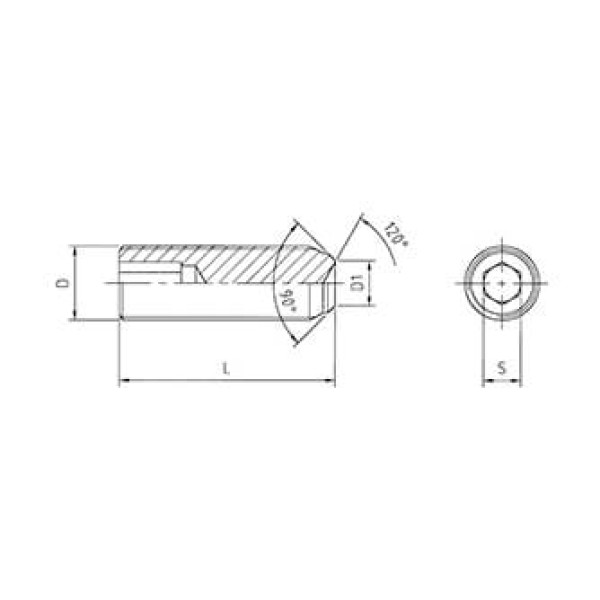

| D | #4 | #5 | #6 | #8 | #10 | 1/4” | 5/16” | 3/8” | 7/16” | 1/2” | 5/8” | 3/4” | 7/8” | 1” | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 (max.) | 0.056 | 0.062 | 0.069 | 0.082 | 0.095 | 0.125 | 0.156 | 0.187 | 0.218 | 0.250 | 0.312 | 0.375 | 0.437 | 0.500 | D1 (max.) |
| S | 0.050 | 1/16 | 1/16 | 5/64 | 3/32 | 1/8 | 5/32 | 3/16 | 7/32 | 1/4 | 5/16 | 3/8 | 1/2 | 9/16 | S |
| Hilos/ “ | 40 | 40 | 32 | 32 | 24 | 20 | 18 | 16 | 14 | 13 | 11 | 10 | 9 | 8 | Hilos/ “ |
 |
0.67 | 1.2 | 1.2 | 2.6 | 4.5 | 10.6 | 20.7 | 35.8 | 56.7 | 84.7 | 165 | 284.7 | 649.7 | 903.9 | |
| L |  1/8 |
1/8 |
1/8 |
1/8 |
3/16 |
3/16 |
1/4 |
1/4 |
3/8 |
3/8 |
1/2 |
 5/8 |
 7/8 |
1” |
L |
| 3/16 |
3/16 |
3/16 |
3/16 |
1/4 |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
1” |
1” 1/2 |
||
| 1/4 |
1/4 |
1/4 |
1/4 |
5/16 |
5/16 |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
1” |
2” 1/2 |
2” |
||
| 5/16 |
5/16 |
5/16 |
5/16 |
3/8 |
3/8 |
1/2 |
1/2 |
5/8 |
3/4 |
1” |
 1” 1/4 |
3” |
|||
| 3/8 |
3/8 |
3/8 |
3/8 |
1/2 |
1/2 |
5/8 |
5/8 |
3/4 |
7/8 |
1” 1/4 |
1” 1/2 |
||||
| 1/2 |
1/2 |
1/2 |
7/16 |
5/8 |
5/8 |
3/4 |
3/4 |
7/8 |
1” |
1” 1/2 |
1” 3/4 |
||||
| 5/8 |
5/8 |
5/8 |
1/2 |
3/4 |
3/4 |
7/8 |
7/8 |
1” |
1” 1/4 |
1” 3/4 |
2” |
||||
| 3/4 |
3/4 |
5/8 |
7/8 |
7/8 |
1” |
1” |
1” 1/4 |
1” 1/2 |
2” |
2” 1/2 |
|||||
| 7/8 |
3/4 |
1” |
1” |
1” 1/4 |
1” 1/4 |
1” 1/2 |
1” 3/4 |
2” 1/2 |
3” |
||||||
| 1” |
7/8 |
1” 1/4 |
1” 1/4 |
1” 1/2 |
1” 1/2 |
2” |
2” |
3” |
|||||||
| 1” |
1” 1/2 |
1” 3/4 |
1” 3/4 |
2” 1/2 |
|||||||||||
| 1” 3/4 |
2” |
2” |
3” |
||||||||||||
| 2” |
2” 1/2 |
Par de apriete recomendado
Dureza 45 HRC min.
Temperaturas de uso -29º a +204ºC
