Tuerca de nylon con moleteado fino, forma alta DIN 466*
DIN 466*
Tuerca de nylon con moleteado fino, forma alta
Knurled nuts, high form, fine knurling
*Similar to DIN 466
Standard material: Polyamide
Colour: White

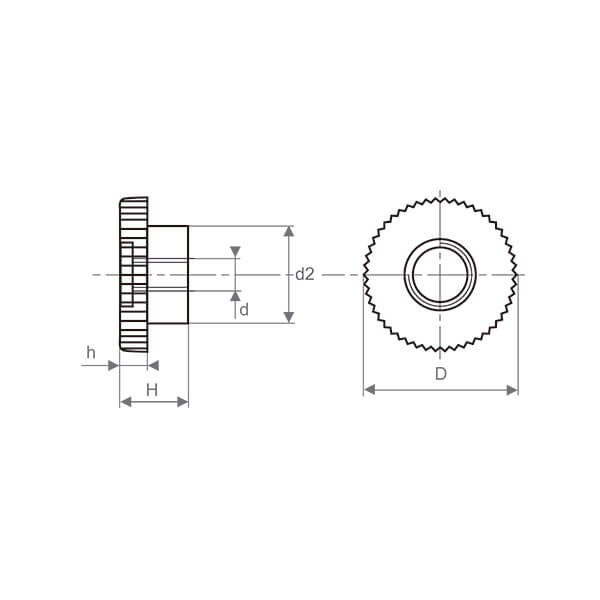

| Ref. | d | D | d2 | H | h |
|---|---|---|---|---|---|
| 466FN-12-3 | M3 | 12 | 7,0 | 7 | 3,5 |
| 466FN-12-4 | M4 | 12 | 7,0 | 7 | 3,5 |
| 466FN-14-5 | M5 | 14 | 8,8 | 7 | 3,5 |
| 466FN-16-4 | M4 | 16 | 9,5 | 8 | 4,5 |
| 466FN-16-5 | M5 | 16 | 9,5 | 8 | 4,5 |
| 466FN-16-6 | M6 | 16 | 9,5 | 8 | 4,5 |
| 466FN-20-5 | M5 | 20 | 13,0 | 11 | 6,0 |
| 466FN-20-6 | M6 | 20 | 13,0 | 11 | 6,0 |
RAL and special colours upon request.
