Series FA (100 · 200 · 300)
Series FA (100 · 200 · 300)

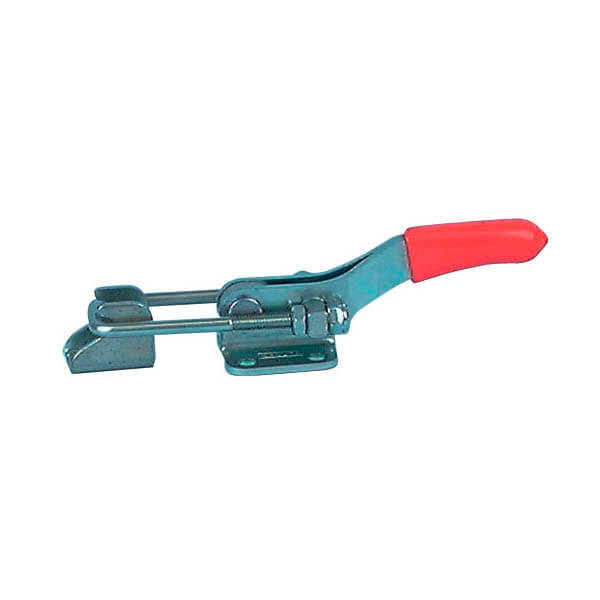

Brida de tirante y cierre
Remaches en acero inoxidable
Empuñadura: vinilo color rojo

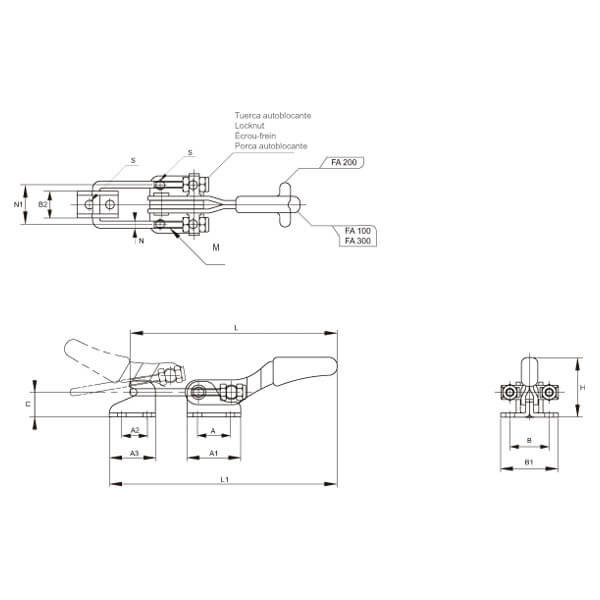

| Ref. | Mod. | A | A1 | A2 | A3 | B | B1 | B2 | C | H | L | L1 min. |
L1 max. |
M | N | N1 | S |  |
g |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KKFA-100 |
FA 100 | 16,0 | 26,0 | 10,0 | 20 | 19 | 27,8 | 13,0 | 12,0 | 29,0 | 101,0 | 96,0 | 108,5 | M4 (x0,7) | 3,5 | 19,0 | 4,2 | 106 Kg | 70 | 29,0 |
| KKFA-200 |
FA 200 | 19,0 | 41,0 | 14,3 | 26 | 32 | 44,5 | 17,5 | 16,0 | 49,8 | 148,4 | 144,4 | 159,4 | M5 (x0,8) | 4,8 | 25,4 | 6,8 | 320 Kg | 215 | 40,5 |
| KKFA-300 |
FA 300 | 41,3 | 60,5 | 19,0 | 38 | 38 | 54,0 | 30,2 | 23,4 | 75,0 | 215,0 | 211,0 | 230,0 | M8 (x1,25) | 7,9 | 44,5 | 8,5 | 900 Kg | 620 | 63,0 |
Mod. = Modelo
Fuerza de sujeción
Recorrido
g = Peso
