Clamp short with saddle

Clamp short with saddle
Forged tempered steel
Surface: Galvanized and blue passivated

Categorias: , .

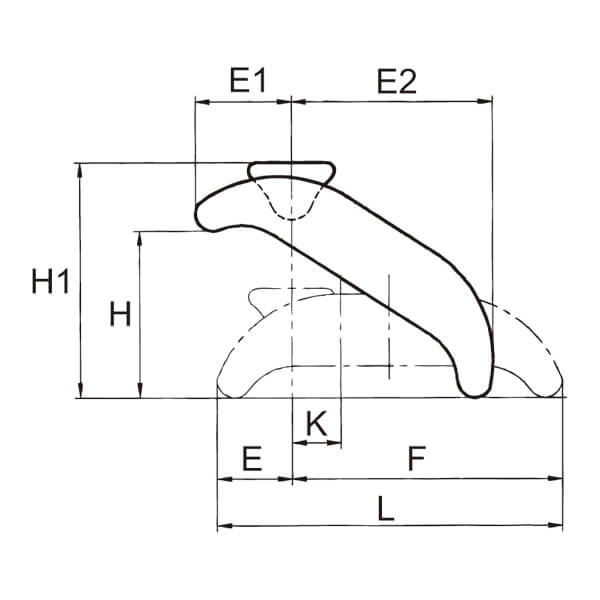

Ref. D Canal - Slot - Rainure - Ranhura DIN 787* h-H H1 B x L E E1 E2 F K g
3932K-13 13 12 - 14 M12 0 - 35 30 - 55 38x88 23 28 48 68 14 260
3932K-18 18 16 - 18 M16 0 - 55 42 - 84 56x130 29 38 74 101 18 809
3932K-22 22 20 - 22 M20 0 - 65 50 - 100 66x140 32 46 80 112 20 1.253
3932K-26 26 24 - 28 M24 0 - 75 54 - 111 76x174 39 52 100 135 24 1.718
3932K-32 32 36 M30 0 - 80 62 - 125 90x200 44 61 110 156 28 2.785

Slot
h-H = Min. & max. height

The design of this clamp avoids the use of screw jacks when performing the fastening.
* The clamp includes a ball and socket joint. The stud must be requested separately.
