6314 D

6314 D

Step clamp

Step clamp
Steel C45
Surface: Grey powder coated

Categorias: , .

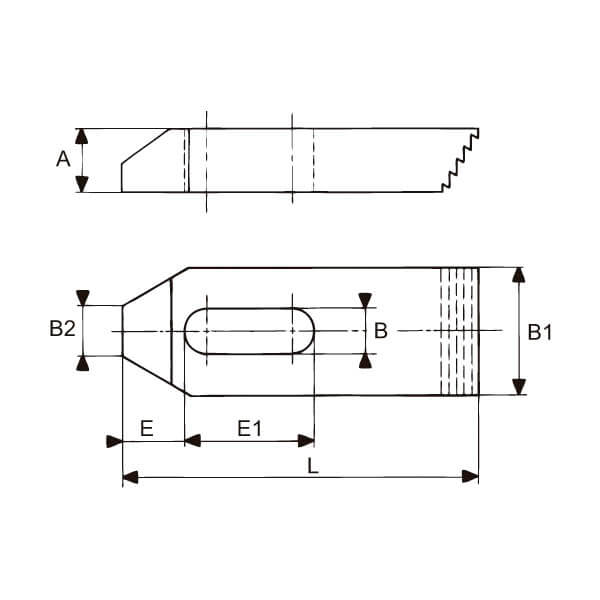

Ref. B L M A B1 B2 E E1 g
6314D-7-50 7 50 M6 10 20 8 10 20 55
6314D-7-80 7 80 M6 10 20 8 10 45 90
6314D-9-60 9 60 M8 12 25 10 13 22 100
6314D-9-100 9 100 M8 12 25 10 13 60 180
6314D-11-80 11 80 M10 15 30 12 15 30 200
6314D-11-125 11 125 M10 15 30 12 15 70 350
6314D-14-100 14 100 M12 M14 20 40 14 21 40 450
6314D-14-160 14 160 M12 M14 20 40 14 21 60 680
6314D-18-125 18 125 M16 M18 25 50 18 26 45 900
6314D-18-200 18 200 M16 M18 25 50 18 26 80 1.150
6314D-22-160 22 160 M20 M22 30 60 22 30 60 1.700
6314D-26-200 26 200 M24 30 70 26 35 80 2.500

The clamp edge has been designed for exclusive use with screw jack No 2016.
* Dimensions outside DIN standard.
