Low type tenons

Low type tenons
Case-hardened steel
Surface: Ground

Categorias: , .
Ref. Mod. B H L DIN 84 / DIN 912 g
63221-01 01 10 8 20 M4x10 15
63221-02 02 12 8 20 M5x12 19
63221-03 03 14 10 22 M6x16 21
63221-04 04 16 10 22 M6x16 26
63221-05 05 18 10 22 M6x16 30
63221-06 06 20 10 22 M6x16 34
63221-07 07 22 12 32 M6x16 55
63221-08 08 24 12 32 M6x16 62

Mod. = Model

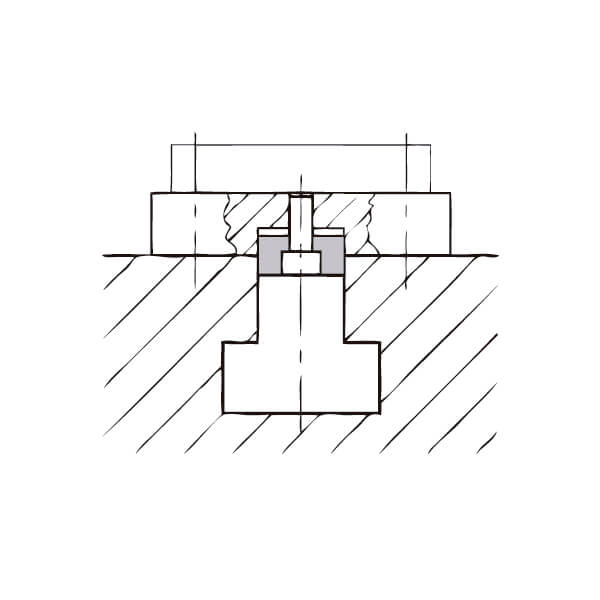

They serve for quick lineup and placement of different tools parallel to the slots on the machine table.
They avoid the need to use a comparison tool and this reduces preparation time and increases precision.
For heavy fixtures with recommend to use loose type tenons DIN 6323.
