Fixed type tenons

Fixed type tenons
Case-hardened steel
Surface: Ground

Categorias: , .

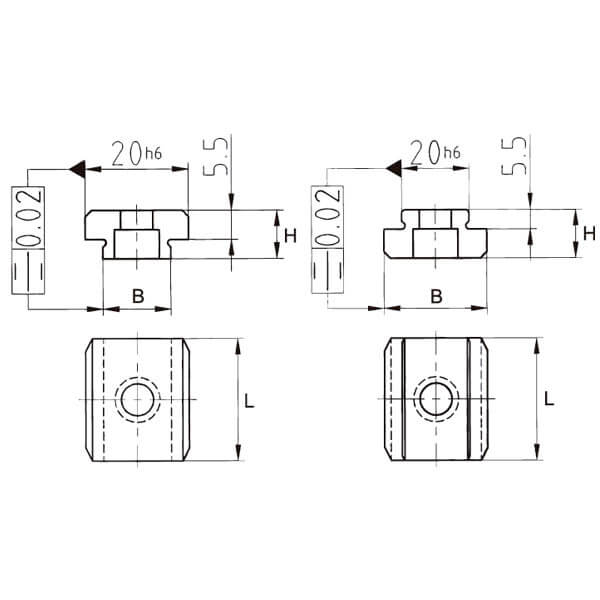

Ref. Mod. Canal - Slot - Rainure - Ranhura B Canal - Slot - Rainure - Ranhura 20 H L DIN 84 / DIN 912 g
63222-01 01 10 20 10 22 M6x10 20
63222-02 02 12 20 10 22 M6x10 25
63222-03 03 14 20 10 25 M6x16 28
63222-04 04 16 20 10 25 M6x16 30
63222-05 05 18 20 10 25 M6x16 30
63222-06* 06 20 20 10 22 M6x16 34
63222-07 07 22 20 12 32 M6x16 50
63222-08 08 24 20 12 32 M6x16 55
63222-09 09 28 20 12 32 M6x16 60
63222-10 10 36 20 12 32 M6x16 75

Mod. = Model
B = Machine T-slot (B)
20 = Fixture T-slot (20 mm.)

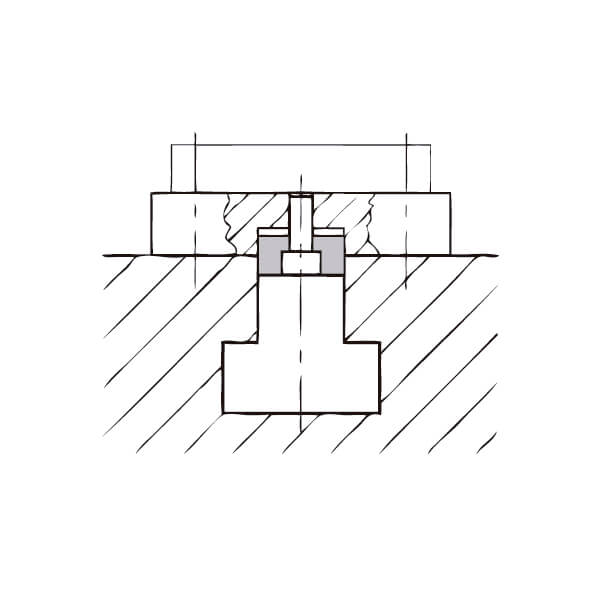

These fixed type tenons are screwed in pairs into the standard 20 mm. wide set slots of vices or fixtures.
By changing the tenons you can work on machines with different slot sizes.
For heavy fixtures with recommend to use loose type tenons DIN 6323.
* Replaced by part no. 63221-06.
