Spring type clamp support

Spring type clamp support
Brass locking screw

Categorias: , .
Ref. Mod. D D1 L L1 S* M g
2044-02 02 22 10,5 30 22 8 M8 - M10 41
2044-03 03 26 14,5 32 22 10 M12 - M14 55
2044-04 04 32 18,5 38 26 12 M16 - M18 89
2044-05 05 38 22,5 40 28 12 M20 - M22 133
2044-06 06 45 27,5 44 32 12 M24 - M27 177

Mod. = Model
M = For screw

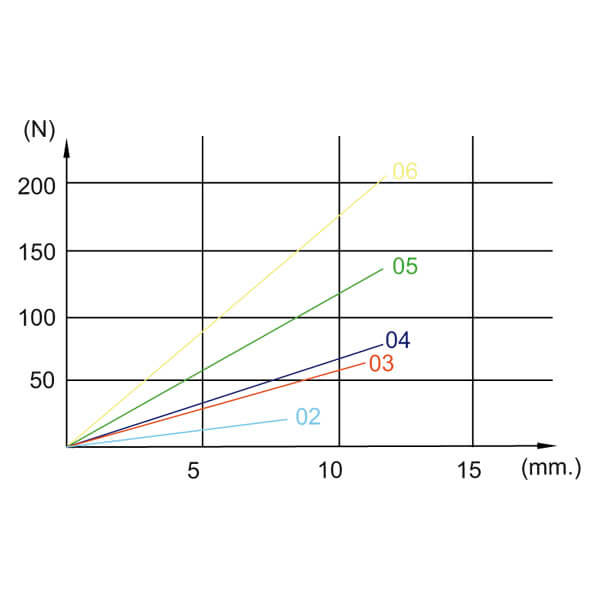

Supporting force (N) and spring compression (mm.)
You can display the graphic in the top images

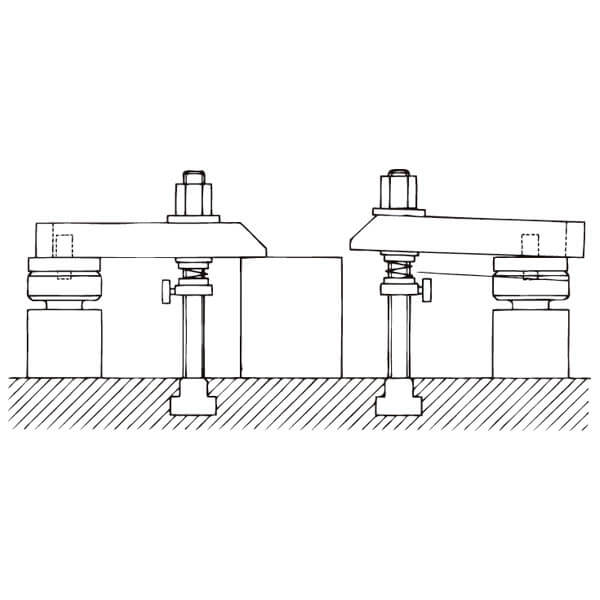

Holds the clamp while the work piece is removed, optimizing time and improving safety.
* S size shows spring compression.
