FBICN-40

FBICN-40

Combi hinge 40

Combi hinge 40
Material: Nylon PA, glass fibre reinforced
Bolt: Stainless steel
Colour: Black

Categorias: , .
Izquierda/Desmontable
Left/Detachable
À gauche dégondable
Esquerda/Desmontável		 Derecha/Desmontable
Right/Detachable
À droite dégondable
Direita/Desmontável		 No desmontable
Non-detachable
Non-dégondable
Não desmontável

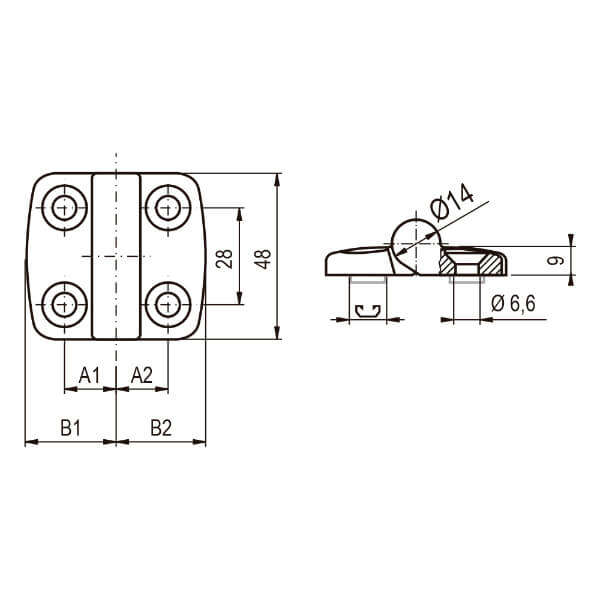

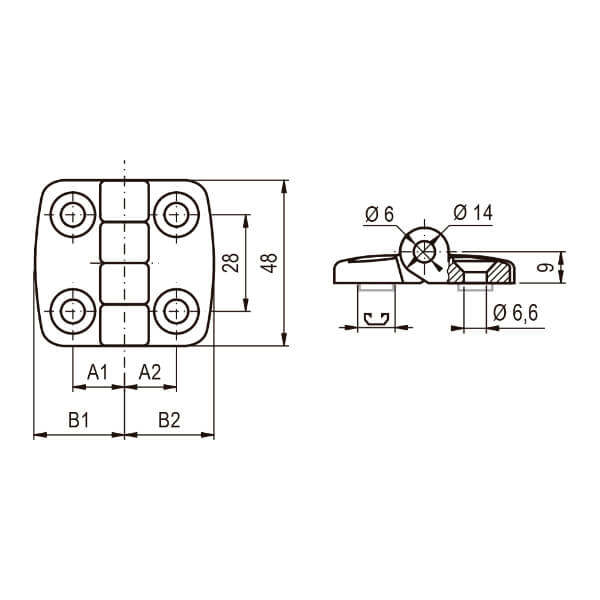

M Canal - Slot - Rainure - Ranhura A1 A2 B1 B2 Ref. FA
max. 		FR
max. 		g Ref. FA
max. 		FR
max. 		g Ref. FA
max. 		FR
max. 		g
40/40 - 22,5 22,5 38,5 38,5 FBICN-40-40I   400 800 42 FBICN-40-40D   350 800 42 FBICN-40-40F   450 750 43
40/40 8 22,5 22,5 38,5 38,5 FBICN-40-40I-8   400 800 42 FBICN-40-40D-8   350 800 42 FBICN-40-40F-8   450 750 43
40/40 10 22,5 22,5 38,5 38,5 FBICN-40-40I-10   400 800 42 FBICN-40-40D-10   350 800 42 FBICN-40-40F-10 450 750 43
40/25 - 22,5 15,0 38,5 26,0 FBICN-25-40I 425 650 37 FBICN-25-40D 425 650 37 FBICN-25-40F 380 500 38
40/30 - 22,5 17,5 38,5 29,5 FBICN-30-40I 500 750 38 FBICN-30-40D 500 750 38 FBICN-30-40F 400 700 39
40/35 - 22,5 20,0 38,5 36,0 FBICN-35-40I 400 750 40 FBICN-35-40D 400 750 40 FBICN-35-40F 400 700 41
40/45 - 22,5 25,0 38,5 43,5 FBICN-40-45I 350 800 43 FBICN-40-45D 350 800 43 FBICN-40-45F 450 750 44
40/50 - 22,5 27,5 38,5 48,5 FBICN-40-50I 350 800 45 FBICN-40-50D 350 800 45 FBICN-40-50F 425 800 46
40/60 - 22,5 32,5 38,5 57,5 FBICN-40-60I 240 800 49 FBICN-40-60D 240 800 49 FBICN-40-60F 175 850 49

Canal - Slot - Rainure - Ranhura Slot
FA max. Maximum Axial Force (N)
FR max. Maximum Radial Force (N)

Further colors, fixing pins for installation on aluminium profiles available on request.
To hinge panels or aluminium profiles. Fastening is from the front, using M6 countersunk screws.

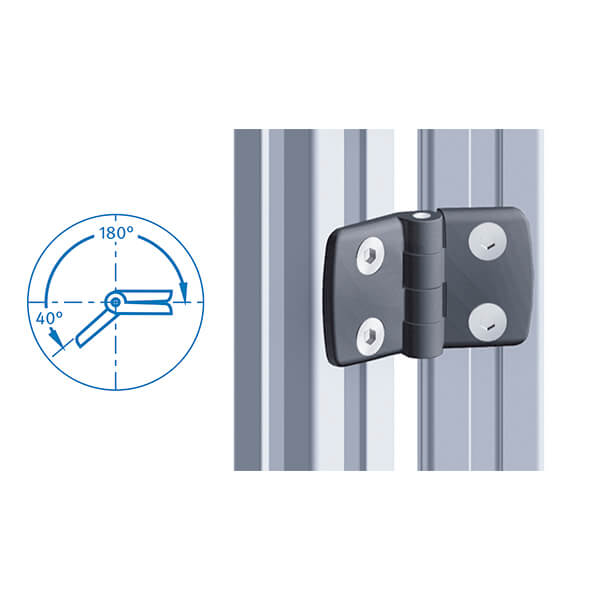

An example can be displayed in the top images.
