FBIZ

Metal hinge
Material: Die-cast zinc
Bolt: Stainless steel
Surface: Black powder coated

Categorias: Accessories for Aluminum Profile Systems, Hinges.

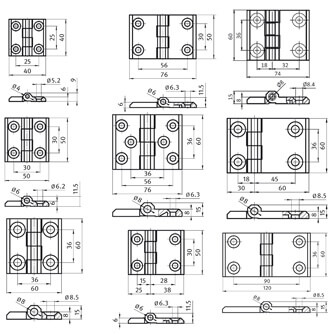

Ref.	FA max.	FR max.	g
FBIZ-40-40	800	1.500	45
FBIZ-50-50	1.000	1800	90
FBIZ-60-60	1.400	2.200	168
FBIZ-50-76	600	1.800	145
FBIZ-60-76	1.200	2.200	197
FBIZ-50-63	1.400	2.200	106
FBIZ-60-74	1.200	2.200	196
FBIZ-60-90	800	2.200	218
FBIZ-60-120	700	2.200	281

FA max. Maximum Axial Force (N)
FR max. Maximum Radial Force (N)

Other surfaces and further colors on request.

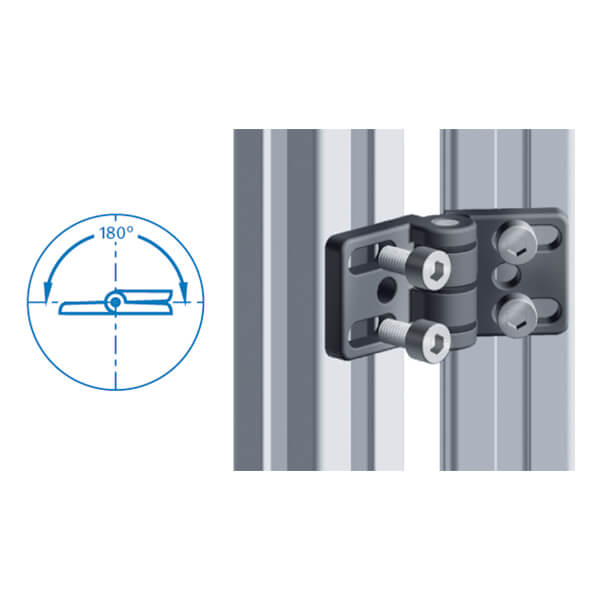

Sturdy hinge for rigth and left application. Fastening is from the front, using countersunk screws.
