Series HH 150

Series HH 150

Horizontal handle, hold down action

Horizontal handle, hold down action
Material: Zinc plated steel / Stainless steel 304
Stainless steel rivets
Red vinyl handle grip

Categorias: , .

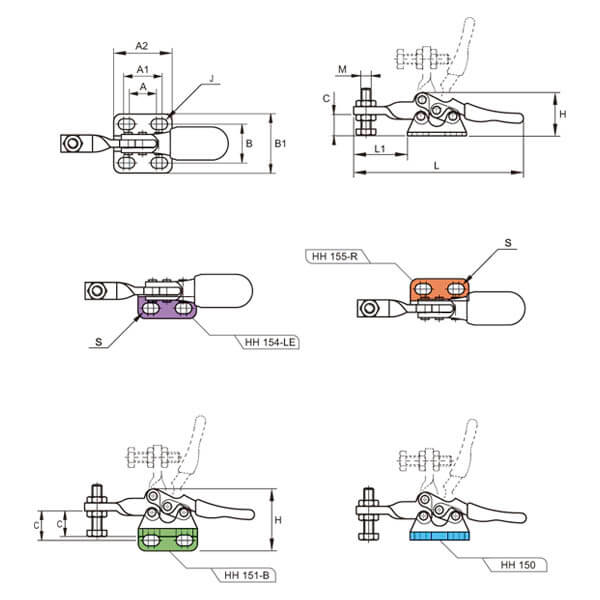

Ref. Mod. A A1 A2 B B1 C H L L1 M S Fuerza de sujeción - Holding capacity - Capacité de serrage - Força de fixação g Ángulo de empuñadura - Handle moves - Rotation de la poignée - Ãngulo de punho Ángulo de brazo - Bar moves - Rotation de la bride - Ángulo do braço 3D
KKHH-150 HH 150 11,1 15,9 24,3 15,9 24,3 10,3 19 72 22 M4 (x0,7) 4,4x6,7 27 Kg 25 70º 90º 3D
KKHH-151B HH 151-B 11,1 15,9 24,3 - - 13,8 27 72 22 M4 (x0,7) 4,4x6,7 27 Kg 25 70º 90º 3D
KKHH-154LE HH 154-LE 11,1 15,9 24,3 - - 10,3 19 72 22 M4 (x0,7) 4,4x6,7 27 Kg 27 70º 90º 3D
KKHH-155R HH 155-R 11,1 15,9 24,3 - - 10,3 19 72 22 M4 (x0,7) 4,4x6,7 27 Kg 27 70º 90º 3D

Mod. = Model
Holding capacity
Handle moves
Handle moves
g = Weight
Available in stainless steel (KKHHI-1502S, KKHHI-151B2S)

Ideal for light weight materials and light work production or assembly operations. Solid bar with fixed spindle position furnished with M4 nylon hex head spindle (stainless steel hex spindle for stainless steel models).ions. Solid bar with fixed spindle position furnished with M4 nylon hex head spindle (stainless steel hex spindle for stainless steel models).
