Series HH 450

Horizontal handle, hold down action

Horizontal handle, hold down action
Stainless steel rivets
Red vinyl handle grip
Material: Zinc plated steel / Stainless steel 304

Categorias: Toggle Clamps , Vertical Torque Arms - Horizontal .

Óculos
Downloads

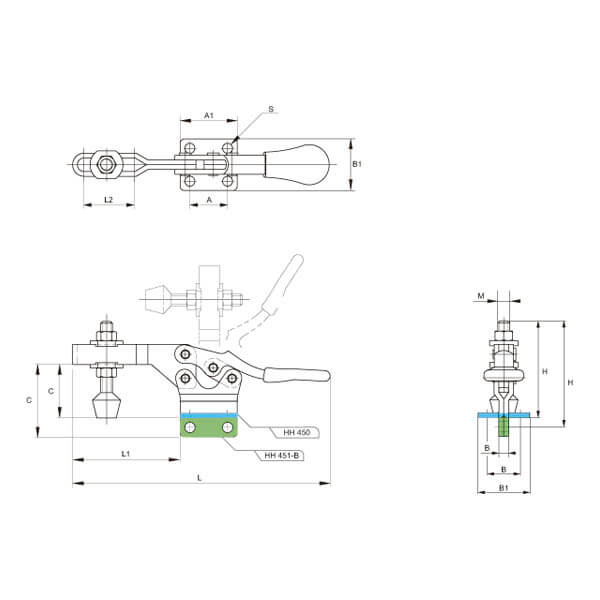

	Mod.	A	A1	B	B1	C	H	L	L1	L2	M	S		gr
HHKK-450	HH 450	25,4	38,5	22,2	34,8	34	68	175	73	34	M8 (x1,25)	6,7	240 Kg	275	60Âº	90Âº
HHKK-451B	HH 451-B	25,4	38,5	6,4	-	41,3	73	175	73	34	M8 (x1,25)	6,7	240 Kg	276	60Âº	90Âº
HHKK-4502S	HH 450-2S	25,4	38,5	22,2	34,8	34	68	175	73	34	M8 (x1,25)	6,7	240 Kg	255	60Âº	90Âº
HHKK-451B2S	HH 451-B2S	25,4	38,5	6,4	-	41,3	54,8	173,4	72,4	34	M8 (x1,25)	6,7	240 Kg	274	60Âº	90Âº

Mod. = Model
Holding capacity
Handle moves
Bar moves
gr = Weight
Available in stainless steel (KKHHI-4502S, KKHHI-451B2S)

Larger U-bar clamps provides higher holding capacity. Clamps are supplied with neoprene tipped spindle and two flanged washers (stainless steel hex spindle assemblies for stainless steel models).
Compatible with cross bar set. See accessories for further information.
