Series HH 500

Series HH 500

Horizontal handle, hold down action

Horizontal handle, hold down action
Stainless steel rivets
Embossed red handle grip provided

Categorias: , .

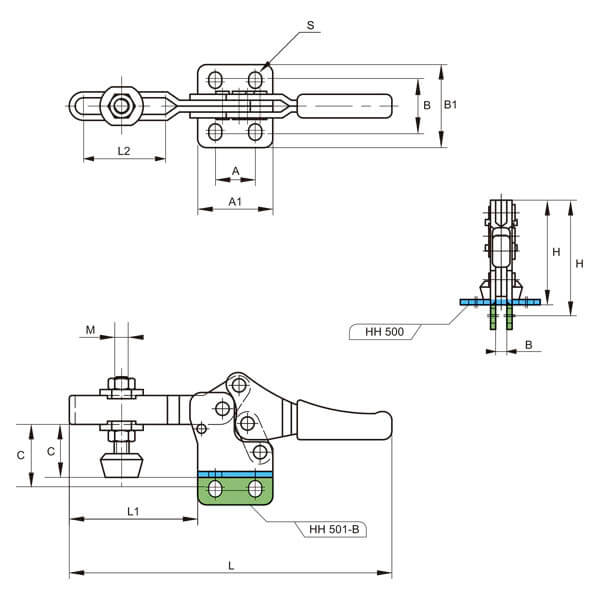

Ref. Mod. A A1 B B1 C H L L1 L2 M S Fuerza de sujeción - Holding capacity - Capacité de serrage - Força de fixação gr Ángulo de empuñadura - Handle moves - Rotation de la poignée - Ãngulo de punho Ángulo de brazo - Bar moves - Rotation de la bride - Ángulo do braço
KKHH-500 HH 500 26 40 31 43,6 34 61,8 198 67,3 33 M8 (x1,25) 6,6x9,1 227 Kg 322 55º 96º
KKHH-501B HH 501-B 26 40 6,4 - 39 66,8 198 67,3 33 M8 (x1,25) 6,6x9,1 227 Kg 322 55º 96º

Mod. = Model
Holding capacity
Handle moves
Bar moves
gr = Weight
Available in stainless steel (KKHHI-5002S, KKHHI-501B2S)

Clamps designed to provide more hand clearance when they are in full open position. Horitzontal handle hold-down U-bar clamp supplied with neoprene tipped spindle and two flanged washers (stainless steel hex spindle assemblies for stainless steel models).
Compatible with cross bar set. See accessories for further information.
