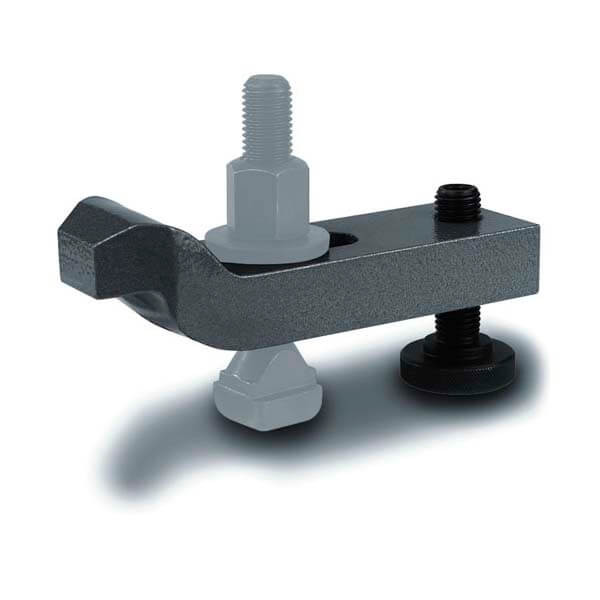

6316 R
Ref. | ![]() |
DIN 6316 B x L |

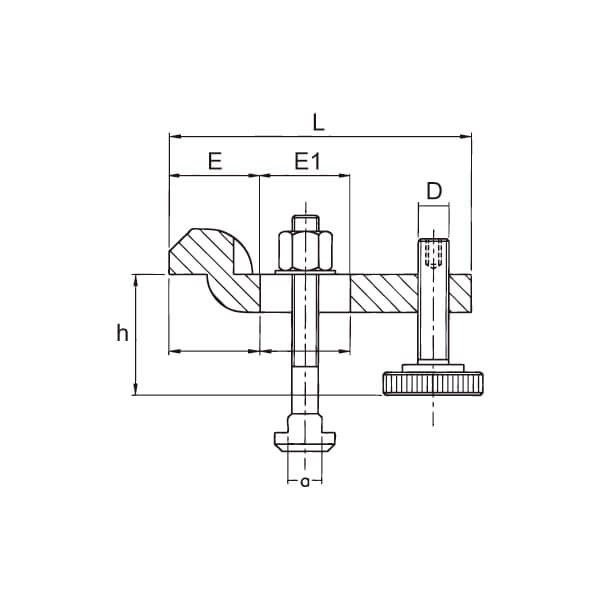

M* | D | h-H | E | E1 | g |
---|---|---|---|---|---|---|---|---|
6316R-11-100 | 10 | 11x100 | M10X10X63 | M10 | 23 - 42 | 32 | 32 | 320 |
6316R-14-125 | 12 | 14x125 | M12X12X 80 | M12 | 30 - 53 | 40 | 40 | 760 |
6316R-14-125 | 14 | 14x125 | M12X14X80 | M12 | 30 - 53 | 40 | 40 | 760 |
6316R-18-160 | 16 | 18x160 | M16X16X100 | M16 | 38 - 65 | 49 | 50 | 1.480 |
6316R-18-160 | 18 | 18x160 | M16X18X100 | M16 | 38 - 65 | 49 | 50 | 1.480 |
6316R-22-200 | 20 | 22x200 | M20X20X125 | M20 | 46 - 83 | 55 | 70 | 2.690 |
6316R-22-200 | 22 | 22x200 | M20X22X125 | M20 | 46 - 83 | 55 | 70 | 2.690 |
6316R-26-200 | 24 | 26x200 | M24X24X160 | M24 | 50 - 87 | 72 | 60 | 4.000 |
6316R-26-200 | 28 | 26x200 | M24X28X160 | M24 | 50 - 87 | 72 | 60 | 4.000 |
Canal
h-H = Altura mín. y máx.
* La brida no incluye el tensor, se debe pedir por separado.
