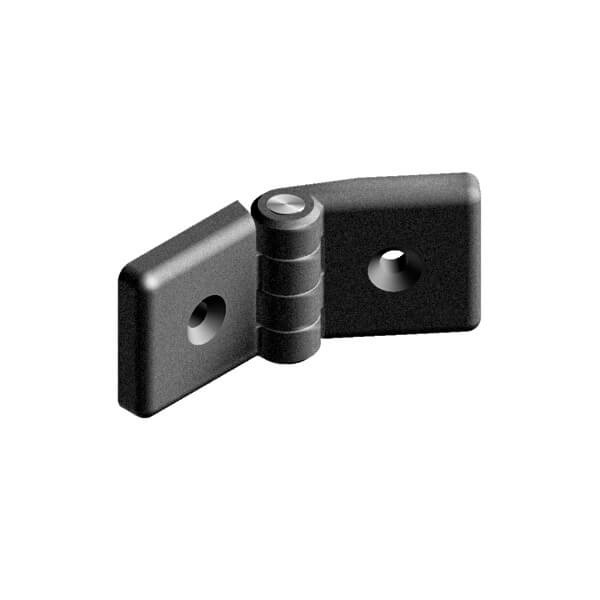

Bisagra para tareas pesadas
Material: Nylon PA, reforzado con fibra de vidrio
Pasador: Acero inoxidable
Color: Negro
Suministrados con/sin conjunto de fijación

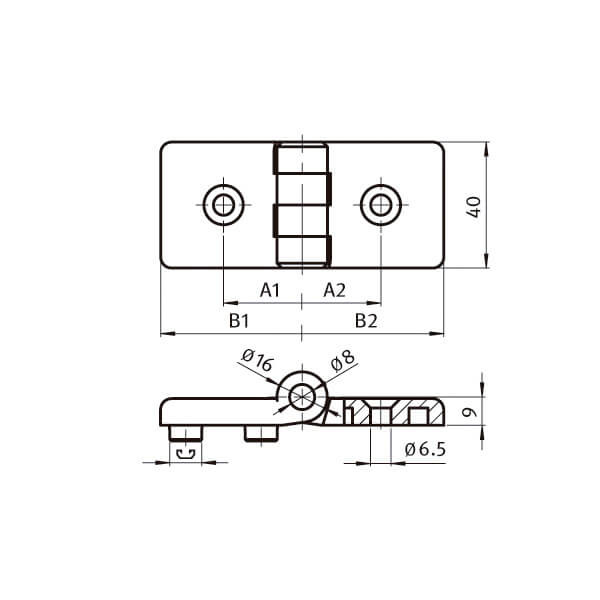

Ref. | M | A1 | A2 | B1 | B2 | FA max. |
FR max. |
g | |
---|---|---|---|---|---|---|---|---|---|
FBIN2-30-30F | 30/30 | - | 17,5 | 17,5 | 30,0 | 30,0 | 150 | 280 | 36 |
FBIN2-30-30F-8 | 30/30 | 8 | 17,5 | 17,5 | 30,0 | 30,0 | 150 | 280 | 37 |
FBIN2-30-40F | 30/40 | - | 17,5 | 22,5 | 30,0 | 39,0 | 150 | 280 | 38 |
FBIN2-30-40F-8 | 30/40 | 8 | 17,5 | 22,5 | 30,0 | 39,0 | 150 | 280 | 39 |
FBIN2-30-40F-8-10 | 30/40 | 8/10 | 17,5 | 22,5 | 30,0 | 39,0 | 150 | 280 | 39 |
FBIN2-30-45F | 30/45 | - | 17,5 | 25,0 | 30,0 | 45,0 | 150 | 280 | 39 |
FBIN2-30-45F-8-10 | 30/45 | 8/10 | 17,5 | 25,0 | 30,0 | 45,0 | 150 | 280 | 40 |
FBIN2-30-60F | 30/60 | - | 17,5 | 32,5 | 30,0 | 60,0 | 130 | 280 | 43 |
FBIN2-30-60F-8-10 | 30/60 | 8/10 | 17,5 | 32,5 | 30,0 | 60,0 | 130 | 280 | 44 |
FBIN2-40-40F | 40/40 | - | 22,5 | 22,5 | 39,0 | 39,0 | 150 | 280 | 40 |
FBIN2-40-40F-8 | 40/40 | 8 | 22,5 | 22,5 | 39,0 | 39,0 | 150 | 280 | 42 |
FBIN2-40-40F-8-10 | 40/40 | 8/10 | 22,5 | 22,5 | 39,0 | 39,0 | 150 | 280 | 43 |
FBIN2-40-40F-10 | 40/40 | 10 | 22,5 | 22,5 | 39,0 | 39,0 | 150 | 280 | 45 |
FBIN2-40-45F | 40/45 | - | 22,5 | 25,0 | 39,0 | 45,0 | 150 | 280 | 41 |
FBIN2-40-45F-8-10 | 40/45 | 8/10 | 22,5 | 25,0 | 39,0 | 45,0 | 150 | 280 | 43 |
FBIN2-40-45F-10 | 40/45 | 10 | 22,5 | 25,0 | 39,0 | 45,0 | 150 | 280 | 45 |
FBIN2-40-60F | 40/60 | - | 22,5 | 32,5 | 39,0 | 60,0 | 130 | 280 | 45 |
FBIN2-40-60F-8-10 | 40/60 | 8/10 | 22,5 | 32,5 | 39,0 | 60,0 | 130 | 280 | 48 |
FBIN2-40-60F-10 | 40/60 | 10 | 22,5 | 32,5 | 39,0 | 60,0 | 130 | 280 | 49 |
FBIN-45-F | 45/45 | - | 25,0 | 25,0 | 45,0 | 45,0 | 150 | 280 | 44 |
FBIN-45-F-10 | 45/45 | 10 | 25,0 | 25,0 | 45,0 | 45,0 | 150 | 280 | 46 |
FBIN2-45-60F | 45/60 | - | 25,0 | 32,5 | 45,0 | 60,0 | 130 | 280 | 47 |
FBIN2-45-60F-10 | 45/60 | 10 | 25,0 | 32,5 | 45,0 | 60,0 | 130 | 280 | 50 |
FBIN2-60-60F | 60/60 | - | 32,5 | 32,5 | 60,0 | 60,0 | 130 | 280 | 51 |
FBIN2-60-60F-10 | 60/60 | 10 | 32,5 | 32,5 | 60,0 | 60,0 | 130 | 280 | 53 |
FBIN2-30-30F-8-C1 | 30/30* | 8 | 17,5 | 17,5 | 30,0 | 30,0 | 150 | 280 | 42 |
FBIN2-30-40F-8-10-C2 | 30/40** | 8/10 | 17,5 | 22,5 | 30,0 | 39,0 | 150 | 280 | 44 |
FBIN2-30-45F-8-10-C2 | 30/45** | 8/10 | 17,5 | 25,0 | 30,0 | 45,0 | 150 | 280 | 45 |
FBIN2-30-60F-8-10-C2 | 30/60** | 8/10 | 17,5 | 32,5 | 30,0 | 60,0 | 130 | 280 | 49 |
FBIN2-40-40F-10-C3 | 40/40*** | 10 | 22,5 | 22,5 | 39,0 | 39,0 | 150 | 280 | 50 |
FBIN2-45-45F-10-C3 | 45/45*** | 10 | 25,0 | 25,0 | 45,0 | 45,0 | 150 | 280 | 51 |
FBIN2-45-60F-10-C3 | 45/60*** | 10 | 25,0 | 32,5 | 45,0 | 60,0 | 130 | 280 | 55 |
FBIN2-60-60F-10-C3 | 60/60*** | 10 | 32,5 | 32,5 | 60,0 | 60,0 | 130 | 280 | 58 |
Canal
FA max. Fuerza Axial máxima (N)
FR max. Fuerza Radial máxima (N)

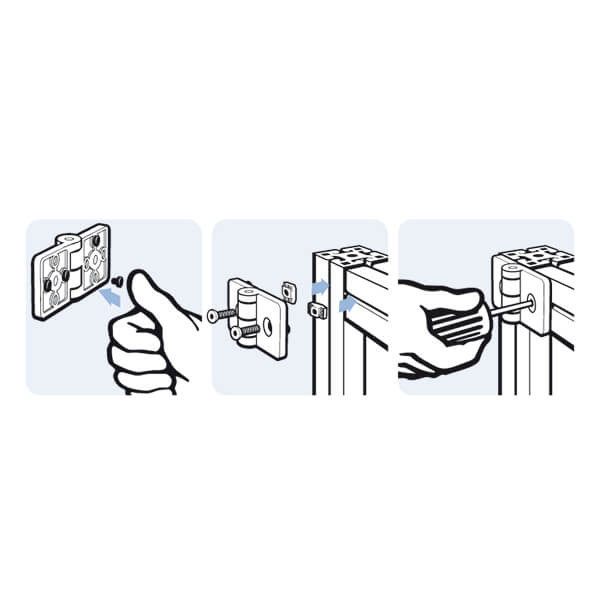

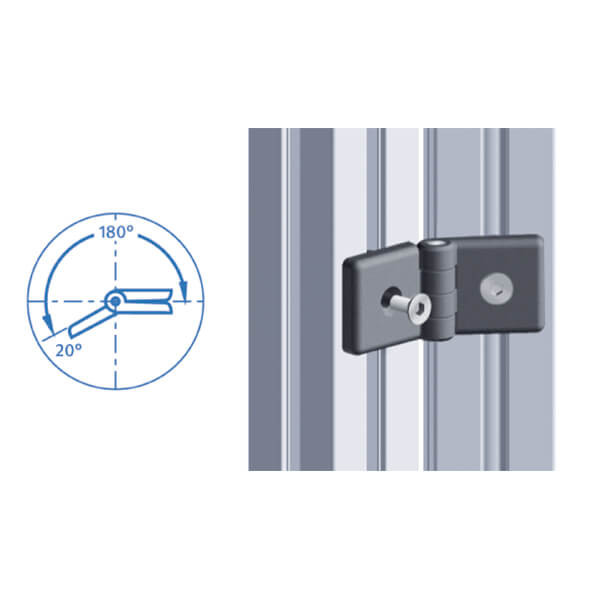

Bisagras para paneles y perfiles de aluminio. La fijación se realiza por la parte frontal mediante tornillos avellanados M6.
* Suministrado con conjunto de fijación Nº1: 2 tornillos DIN 7991 M6x16 y 2 tuercas martillo M6 (canal 8).
** Suministrado con conjunto de fijación Nº2: 1 tornillo DIN 7991 M6x16, 1 tornillo DIN 7991 M6x18, 1 tuerca martillo M6 (canal 8) y 1 tuerca martillo M6 (canal 10).
*** Suministrado con conjunto de fijación Nº3: 2 tornillos DIN 7991 M6x18 y 2 tuercas martillo M6 (canal 10).
Puede visualizarse un ejemplo en las imágenes superiores.
