FPMZ-100-100
FPMZ-100-100

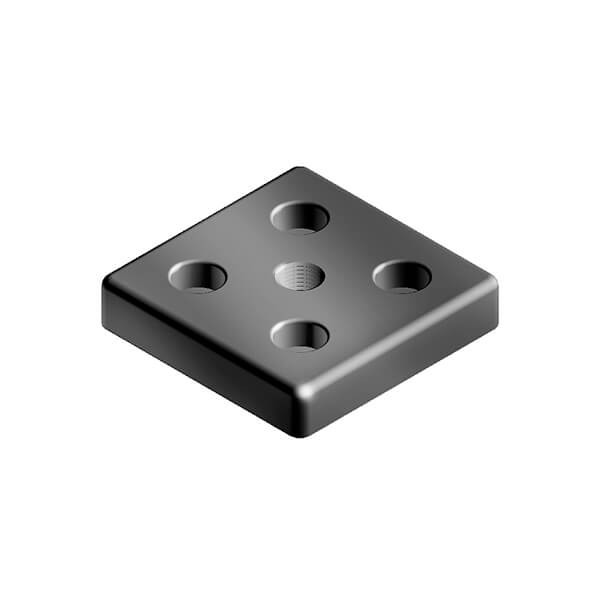

Placa de montaje 100x100
Transport and base plate 100x100
Material: Die-cast zinc
Surface: Plain / Black powder coated
| Sin recubrimiento - Plain - Brute - Sem revestimento | Epoxi negro - Black powder coated - Epoxy noir - Epóxi pretoo | ||||
|---|---|---|---|---|---|

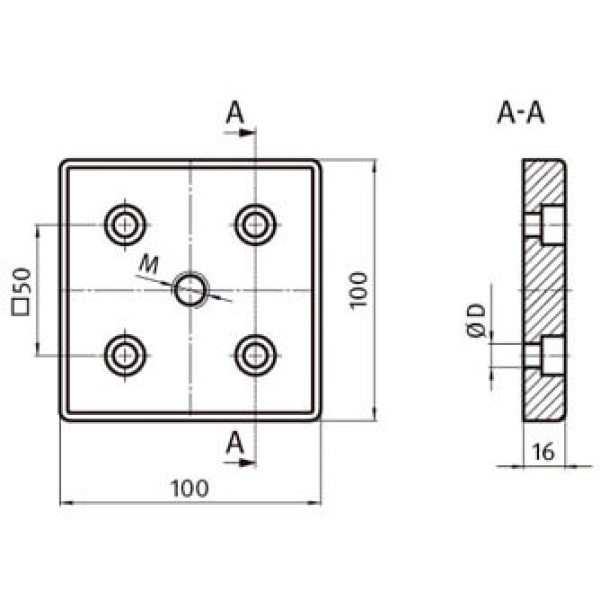

| M | ∅D | Ref. | g | Ref. | g |
| M10 | 9 (M8) | FPMZ-100-100-10-8-BR | 548,0 | FPMZ-100-100-10-8-N | 548,0 |
| M12 | 9 (M8) | FPMZ-100-100-12-8-BR | 545,0 | FPMZ-100-100-12-8-N | 545,0 |
| M14 | 9 (M8) | FPMZ-100-100-14-8-BR | 541,0 | FPMZ-100-100-14-8-N | 541,0 |
| M16 | 9 (M8) | FPMZ-100-100-16-8-BR | 540,0 | FPMZ-100-100-16-8-N | 540,0 |
| M20 | 9 (M8) | FPMZ-100-100-20-8-BR | 531,0 | FPMZ-100-100-20-8-N | 531,0 |
| M10 | 14,5 (M12) | FPMZ-100-100-10-12-BR | 541,0 | FPMZ-100-100-10-12-N | 541,0 |
| M12 | 14,5 (M12) | FPMZ-100-100-12-12-BR | 538,0 | FPMZ-100-100-12-12-N | 538,0 |
| M14 | 14,5 (M12) | FPMZ-100-100-14-12-BR | 531,0 | FPMZ-100-100-14-12-N | 531,0 |
| M16 | 14,5 (M12) | FPMZ-100-100-16-12-BR | 527,0 | FPMZ-100-100-16-12-N | 527,0 |
| M20 | 14,5 (M12) | FPMZ-100-100-20-12-BR | 521,0 | FPMZ-100-100-20-12-N | 521,0 |
Other surfaces, other colors on request.

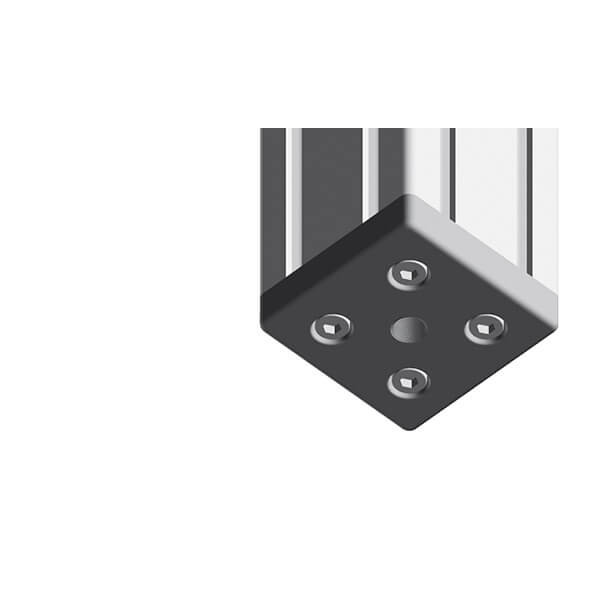

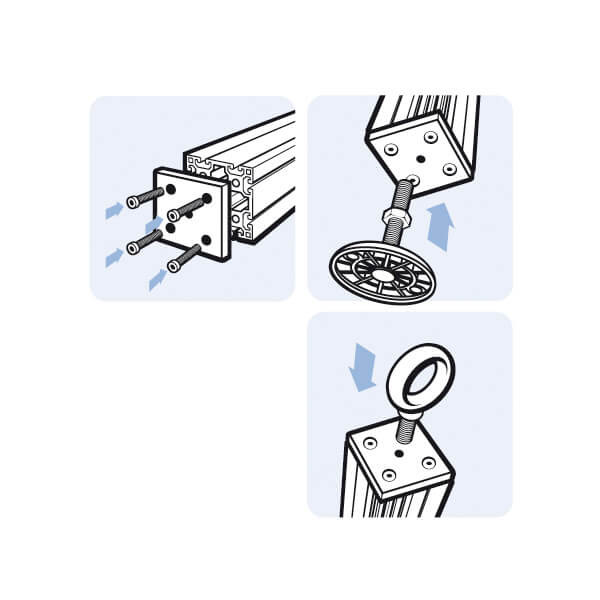

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways.
