Guide pins

Guide pins
Designed for automatic assembly

Categorias: , .
d m6 4 5 6 7 8 10 12 14 16 18 m6 d
r   0,3 0,6 0,6 0,8 1,0 1,0 1,2 1,2 1,2 1,2   r
d2 ≈ 3,0 4,0 4,5 5,0 6,0 8,0 10,0 11,0 12,0 14,0 ≈ d2
k ≈ 0,15 0,2 0,25 0,3 0,4 0,5 0,5 0,5 0,5 0,5 ≈ k
c ≈ 0,8 0,8 1,2 1,4 1,6 2,0 2,5 2,7 3,0 3,5 ≈ c
l ≤ 10 8 8 10 12 12 14 16 25 25 ≤ l
≥ 50 60 80 80 100 100 115 120 120 120 ≥

Advantages
· Approval to standards ISO 2338 and ISO 8734
· Manufactured without machining
· Cost advantages (medium and large series)
· Environmentally friendly manufacture
· Large choice of materials
· No burrs

Free cutting steels, roller bearing steels, case hardened steels, stainless steels and general constructional steels - also in the hardened condition.
Item being searched is subject to a minimum order

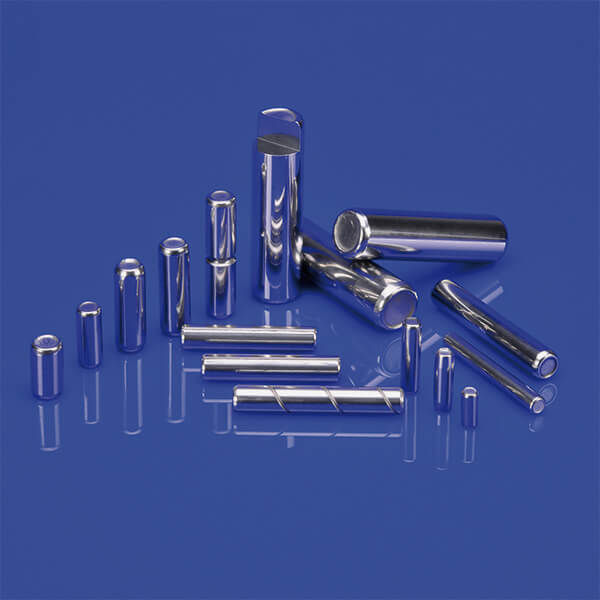

Design examples. See in pictures above.
