6315 GN

6315 GN

Forked clamp with shoe

Forked clamp with shoe
Steel C45
Surface: Grey powder coated

Categorias: , .

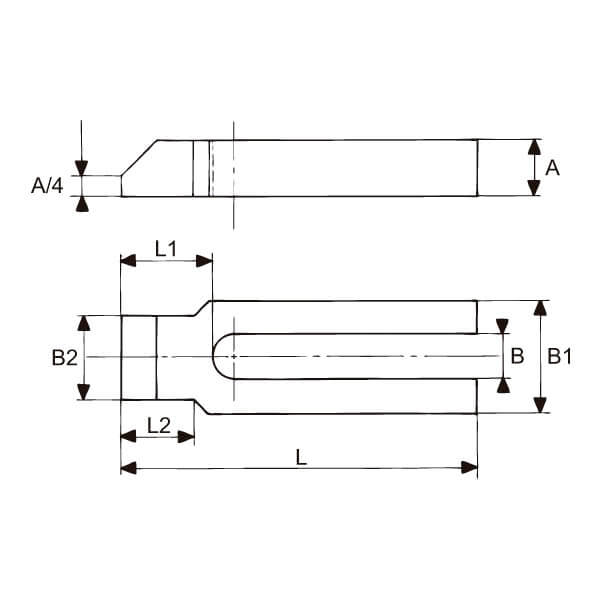

Ref. B L M A B1 B2 L1 L2 g
6315GN-9-100 9 100 M8 15 30 16 32 18 240
6315GN-11-125 11 125 M10 20 30 20 38 24 380
6315GN-14-160 14 160 M12 M14 25 40 24 47 30 800
6315GN-14-200 14 200 M12 M14 25 40 24 47 30 910
6315GN-18-160 18 160 M16 M18 30 50 28 57 36 1.150
6315GN-18-200 18 200 M16 M18 30 50 28 57 36 1.500
6315GN-18-250 18 250 M16 M18 30 50 28 57 36 1.850
6315GN-22-200 22 200 M20 M22 40 60 35 68 45 2.550
6315GN-22-250 22 250 M20 M22 40 60 35 68 45 2.900
6315GN-22-315 22 315 M20 M22 40 60 35 68 45 3.600
6315GN-26-250 26 250 M24 40 70 43 83 56 3.400
6315GN-26-315 26 315 M24 40 70 43 83 56 4.300
6315GN-34-315 34 315 M30 50 80 50 88 56 6.000
6315GN-34-400 34 400 M30 50 80 50 88 56 7.300

The compact design of the shoe allows you to perform the fastening in reduced spaces.
