DIN 6315 C

DIN 6315 C

Forked clamp with pin end

Forked clamp with pin end
Steel C45
Surface: Grey powder coated

Categorias: , .

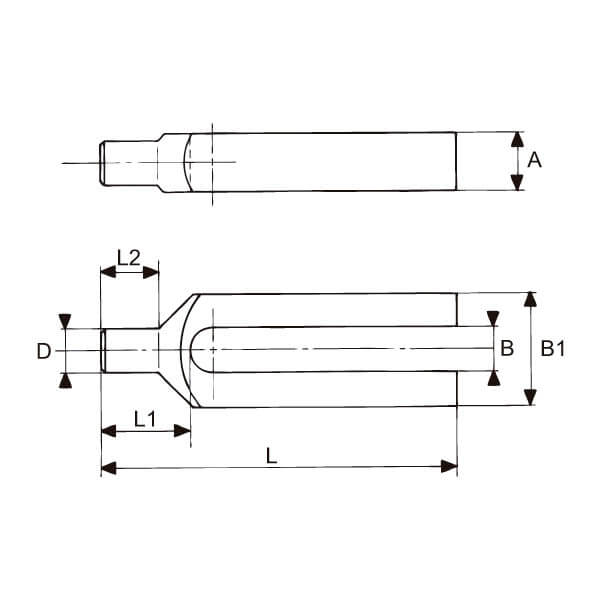

Ref. B L M A B1 D L1 L2 g
6315C-9-100 9 100 M8 15 30 12 30 18 220
6315C-11-125 11 125 M10 20 30 16 36 24 350
6315C-14-160 14 160 M12 M14 25 40 20 45 30 750
6315C-14-200 14 200 M12 M14 25 40 20 45 30 950
6315C-18-200 18 200 M16 M18 30 50 24 55 36 1.400
6315C-18-250 18 250 M16 M18 30 50 24 55 36 1.750
6315C-22-250 22 250 M20 M22 40 60 30 65 45 2.700
6315C-22-315 22 315 M20 M22 40 60 30 65 45 3.400
6315C-26-250 26 250 M24 40 70 38 80 56 3.200
6315C-26-315 26 315 M24 40 70 38 80 56 4.100
6315C-34-315 34 315 M30 50 80 45 85 56 5.700
6315C-34-400 34 400 M30 50 80 45 85 56 7.000

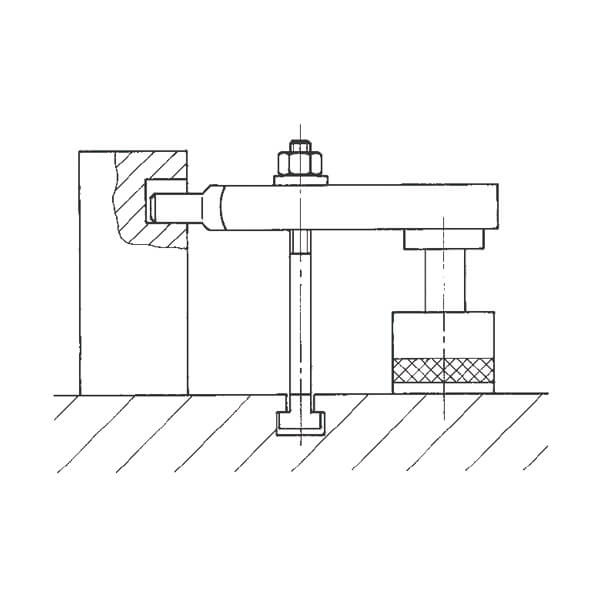

The clamp pin end is recommended for fastening whenever there are space problems or if there is no flat surface available.
