Low height clamping jaws, model ‘Bulle’

Low height clamping jaws, model ‘Bulle’
Tempering steel
Surface: Black-oxided

Categorias: , .

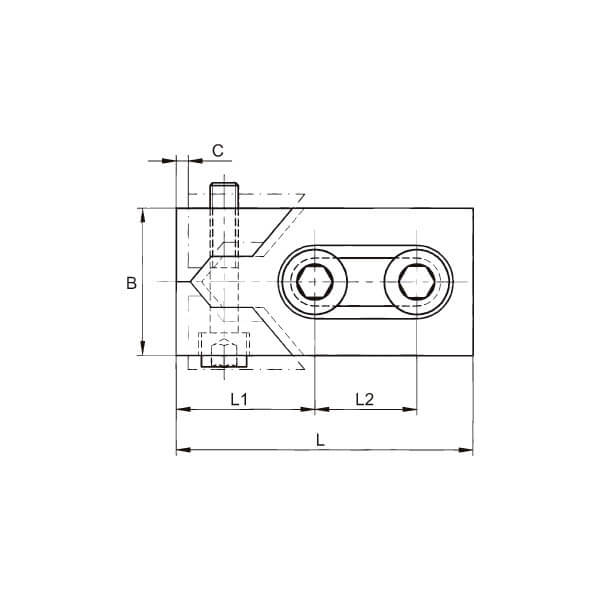

Ref. Mod. Canal - Slot - Rainure - Ranhura B C D H L L1 L2 F1 (kN) F2 (kN) g
2815-01 01 12 40 3 M10 20 80 39 26 16 0,6 1.150
2815-02 02 14 40 3 M12 20 80 39 26 22 0,9 1.250
2815-03 03 16 40 3 M12 20 80 39 26 22 0,9 1.330
2815-04 04 16 50 4 M14 25 100 46 34 32 1,2 2.340
2815-05 05 18 50 4 M16 25 100 46 34 36 1,4 2.540
2815-06 06 20 50 4 M16 25 100 46 34 36 1,4 2.660
2815-07 07 22 78 5 M20 30 140 65 50 36 1,4 5.980
2815-08 08 24 78 5 M20 30 140 65 50 36 1,4 6.330
2815-09 09 28 78 5 M24 30 140 65 50 40 1,6 7.060
2815-10 10 30 78 5 M24 30 140 65 50 40 1,6 7.580

Slot
Mod. = Model

These clamps are suitable for the mechanization of most parts due to its extremely flat design.
The grip strength is performed horizontally (F1) and vertically (F2) to the workbench.
Clamp numbers 2815 are supplied in pairs.
