Height wedge block

Height wedge block
Spherical graphite cast iron and tempering steel

Categorias: , .

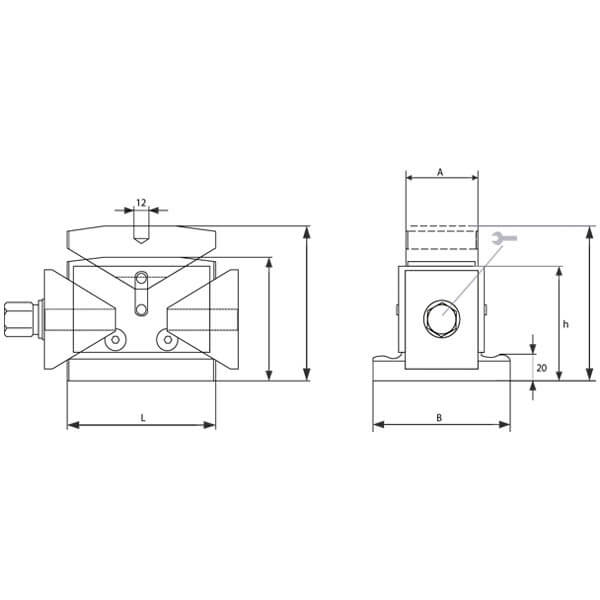

Ref. Mod. h min. H max. A B L Llave Boca - Wrench - Clé - Chave de Boca Ajuste vertical (mm.) por vuelta - Height adjustment per single turn - Réglage vertical (mm) par serrage - Ajuste vertical (mm) por volta Carga máxima (kN) - Max. Load (kN) - Capacité de charge (kN) - Carga máxima (kN) g
2039-10 10 50 63 40 40 63 13 0,86 40 1.300
2039-20 20 100 125 60 115 125 24 1,16 100 8.600
2039-30 30 170 190 80 120 175 46 2,02 250 19.800

Mod. = Model
Wrench
Max. Load (kN)
Height adjustment per single turn

The vertical adjustment is performed using an L-shaped hex key through a ridged socket located on the side.
The alignment wedge comes with ball pad number 2040.
The base has a 12 mm centering hole that allows for coupling of the blocks with a DIN 6325 12x30 dowel pin.
