FPMZ-90-90
FPMZ-90-90
Transport and base plate 90x90
Transport and base plate 90x90
Material: Die-cast zinc
Surface: Plain / Black powder coated
| Sin recubrimiento - Plain - Brute - Sem revestimento | Epoxi negro - Black powder coated - Epoxy noir - Epóxi pretoo | ||||
|---|---|---|---|---|---|
| M | â D | Ref. | g | Ref. | g |
| M10 | 9 (M8) | FPMZ-90-90-10-8-BR | 522,0 | FPMZ-90-90-10-8-N | 522,0 |
| M12 | 9 (M8) | FPMZ-90-90-12-8-BR | 520,0 | FPMZ-90-90-12-8-N | 520,0 |
| M14 | 9 (M8) | FPMZ-90-90-14-8-BR | 519,0 | FPMZ-90-90-14-8-N | 519,0 |
| M16 | 9 (M8) | FPMZ-90-90-16-8-BR | 516,0 | FPMZ-90-90-16-8-N | 516,0 |
| M20 | 9 (M8) | FPMZ-90-90-20-8-BR | 510,0 | FPMZ-90-90-20-8-N | 510,0 |
| M10 | 14,5 (M12) | FPMZ-90-90-10-12-BR | 482,0 | FPMZ-90-90-10-12-N | 482,0 |
| M12 | 14,5 (M12) | FPMZ-90-90-12-12-BR | 480,0 | FPMZ-90-90-12-12-N | 480,0 |
| M14 | 14,5 (M12) | FPMZ-90-90-14-12-BR | 475,0 | FPMZ-90-90-14-12-N | 475,0 |
| M16 | 14,5 (M12) | FPMZ-90-90-16-12-BR | 471,0 | FPMZ-90-90-16-12-N | 471,0 |
| M20 | 14,5 (M12) | FPMZ-90-90-20-12-BR | 463,0 | FPMZ-90-90-20-12-N | 463,0 |
Other surfaces, other colors on request.

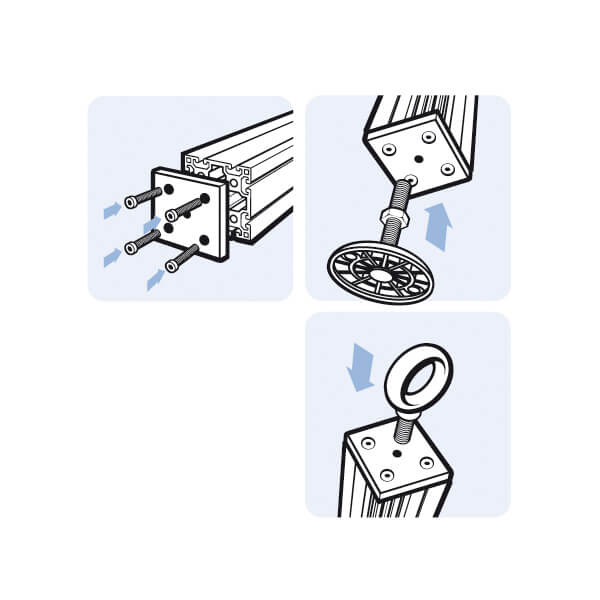

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways.
