Series HV 150

Vertical handle, hold down action

Vertical handle, hold down action
Stainless steel rivets
Red vinyl handle grip (except T-bar)

Categorias: Toggle Clamps , Vertical Torque Arms - Vertical .

Óculos
Downloads

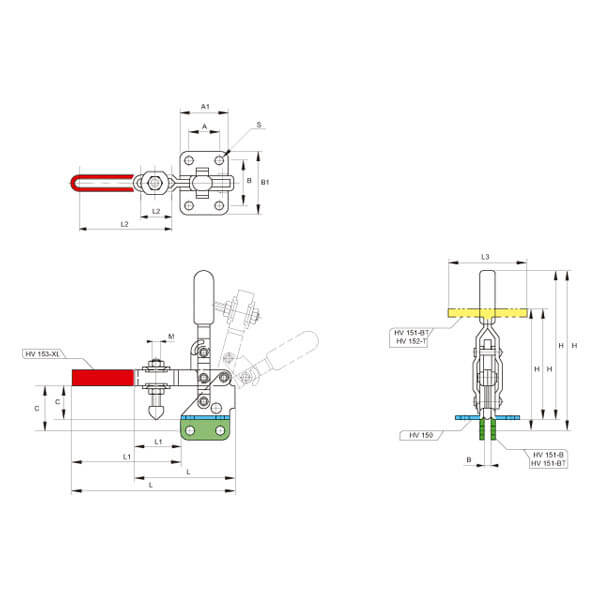

	Mod.	A	A1	B	B1	C	H	L	L1	L2	L3	M	S		g
KKHV-150	HV 150	15,9	25,5	23,8	33,4	15,5	78	53	24,5	15,5	-	M4 (x0,7)	4,4	45 Kg	60	60Âº	105Âº
KKHV-151B	HV 151-B	15,9	25,5	4	-	22,2	90	53	25,5	15,5	-	M4 (x0,7)	4,4	45 Kg	60	60Âº	105Âº
KKHV-151BT	HV 151-BT	15,9	25,5	4	-	22,6	64,1	53,9	25,5	15,5	46	M4 (x0,7)	4,4	45 Kg	70	60Âº	105Âº
KKHV-152T	HV 152-T	15,9	25,5	23,8	33,4	15,9	57,7	53,9	25,5	15,5	46	M4 (x0,7)	4,4	45 Kg	70	60Âº	105Âº
KKHV-153XL	HV 153-XL	15,9	25,5	23,8	33,4	15,9	78,5	79,4	51,0	42,0	-	M4 (x0,7)	4,4	27 Kg	70	60Âº	105Âº

Mod. = Model
Holding capacity
Handle moves
Bar moves
g = Weight
Available in stainless steel (KKHVI-1502S, KKHVI-151B2S)

The smallest vertical handle clamp is applicable for light duty. Ubar clamp supplied with vinyl-coated hex-head spindle assemblies and two flanged washers (stainless steel hex spindle assemblies for stainless steel models).
