E6650
E6650

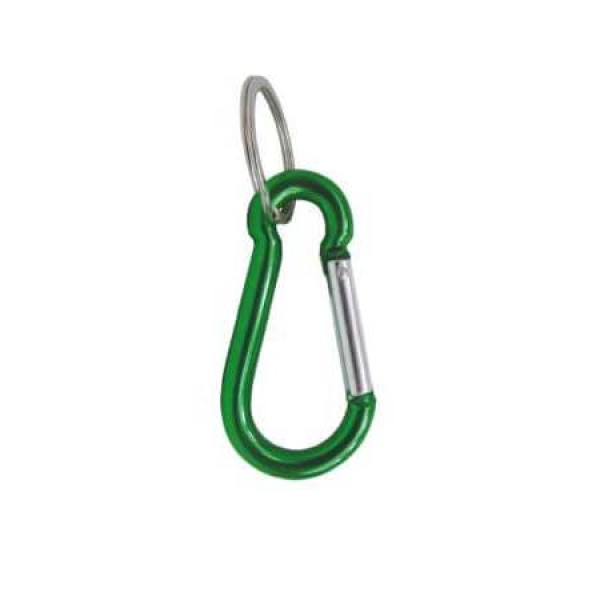

Mosquetòn aluminio pintado con anilla
Aluminio
Colores disponibles: rojo / verde / azul / oro / negro

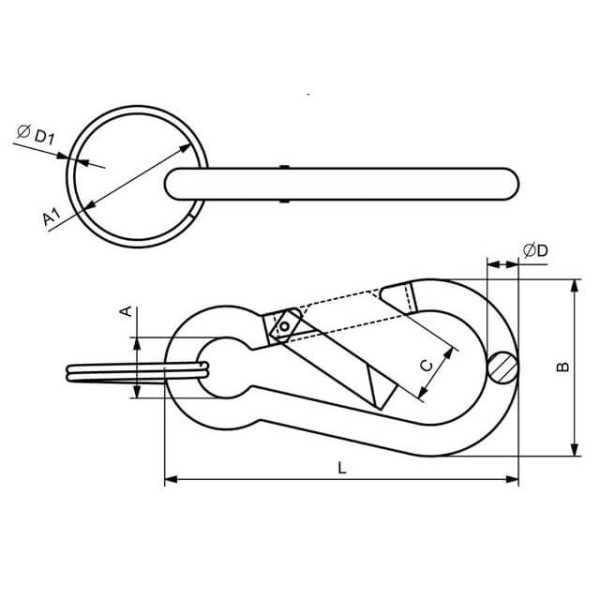

| Ref. | Medida | A | B | C | D | L | A1 | D1 | Kg |
|---|---|---|---|---|---|---|---|---|---|
| E6650-5-50 | 5x50 | 7.5 | 25 | 11 | 4.4 | 50 | 1.5 | 25 | 0,006 |
| E6650-6-60 | 6x60 | 10 | 30 | 12 | 5.2 | 61 | 1.5 | 25 | 0,009 |
| E6650-7-70 | 7x70 | 12 | 35 | 15 | 6.2 | 70 | 1.5 | 25 | 0,014 |
| E6650-8-80 | 8x80 | 12.5 | 38 | 17 | 7.2 | 80 | 1.5 | 25 | 0,021 |
| E6650-10-100 | 10x100 | 15 | 63 | 23 | 8.6 | 100 | 1.5 | 25 | 0,05 |
Conforme a la directiva europea 2006/42/CE
