E7030
E7030

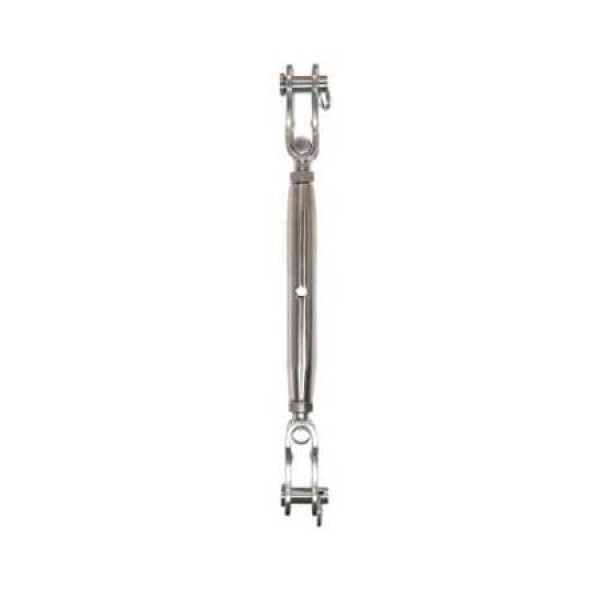

Tensor horquillas moviles de acero inoxidable
Acero AISI 316

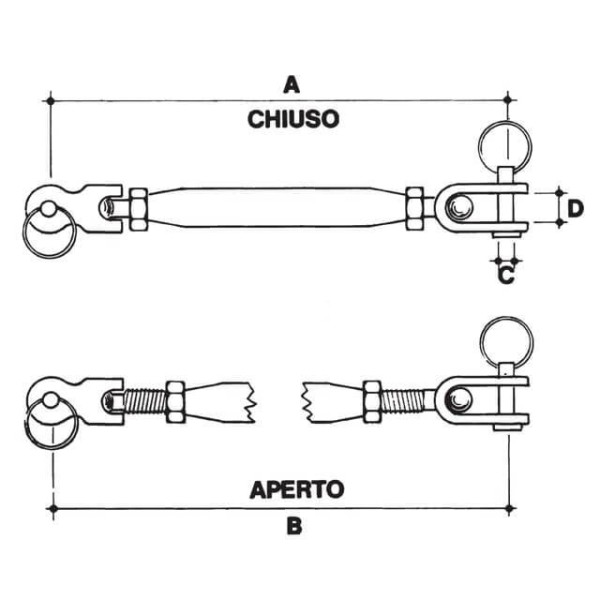

| Ref. | M | Ø Cadena | A | B | C | D | Kg |
|---|---|---|---|---|---|---|---|
| E7030-6 | M6 | 3 | 135 | 190 | 5 | 8 | 0,09 |
| E7030-8 | M8 | 4 | 190 | 260 | 8 | 10 | 0,18 |
| E7030-10 | M10 | 5 | 230 | 320 | 8 | 12 | 0,34 |
| E7030-12 | M12 | 6-7 | 280 | 380 | 8 | 14 | 0,54 |
Conforme a la directiva europea 2006/42/CE
