E7400-E7410
E7400-E7410

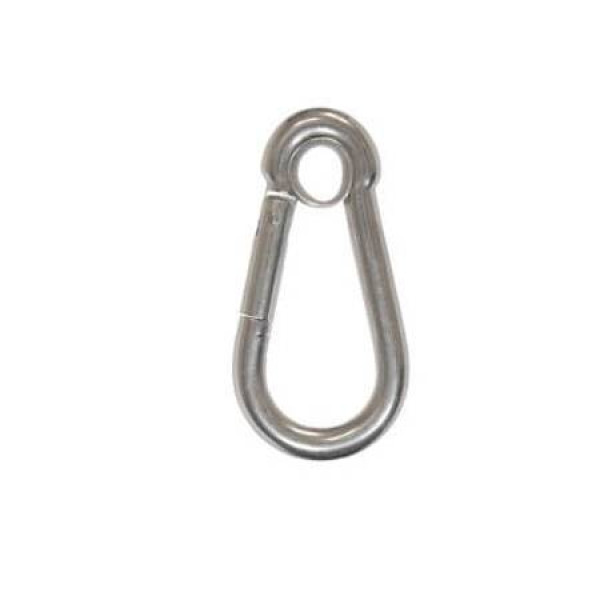

Mosquetòn de acero inoxidable con anillo
Acero AISI 304 / AISI 316

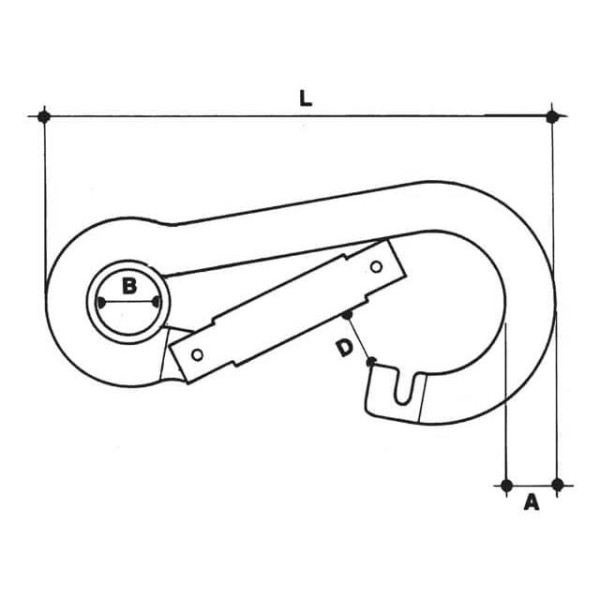

| Ref. ASI 304 | Ref. ASI 306 | M | A | B | D | L | Kg |
|---|---|---|---|---|---|---|---|
| E7400-40 | E7410-40 | 40 | 4 | 4,5 | 6 | 40 | 0,009 |
| E7400-50 | E7410-50 | 50 | 5 | 7 | 7 | 50 | 0,02 |
| E7400-60 | E7410-60 | 60 | 6 | 8 | 8 | 60 | 0,03 |
| E7400-70 | E7410-70 | 70 | 7 | 9 | 9 | 70 | 0,05 |
| E7400-80 | E7410-80 | 80 | 8 | 10,5 | 11 | 80 | 0,07 |
| E7400-90 | E7410-90 | 90 | 9 | 12 | 12 | 90 | 0,09 |
| E7400-100 | E7410-100 | 100 | 10 | 14 | 13 | 100 | 0,13 |
| E7400-120 | E7410-120 | 120 | 11 | 18 | 16 | 120 | 0,19 |
| E7400-140 | E7410-140 | 140 | 12 | 18 | 21 | 140 | 0,26 |
| E7400-160 | E7410-160 | 160 | 13 | 20 | 22 | 160 | 0,36 |
Conforme a la directiva europea 2006/42/CE
