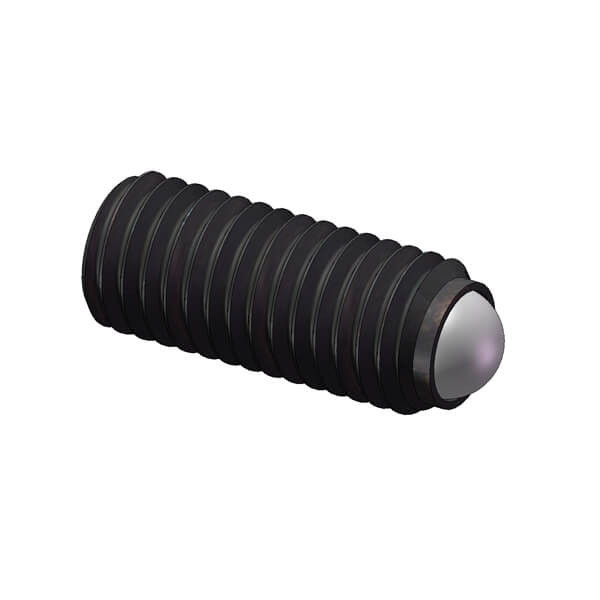

Espárrago de bola con hexágono interior
Espárrago de bola con hexágono interior
Cuerpo: Acero templado, pavonado
Bola: Acero templado

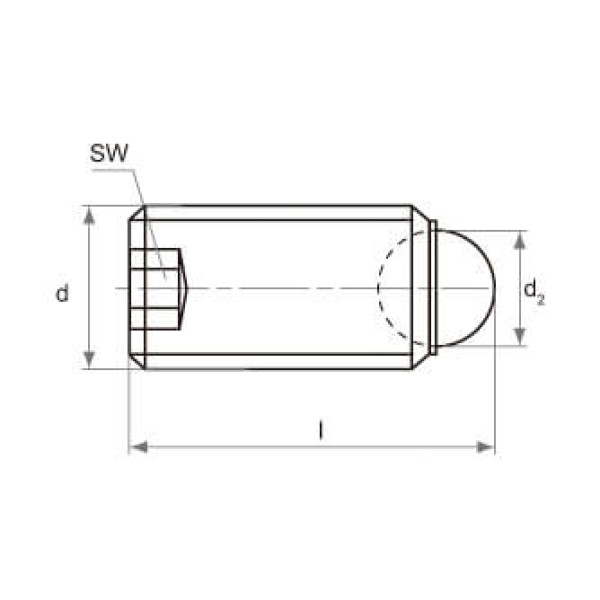

| Ref. | d | l | d2 | SW |
|---|---|---|---|---|
| W320-4-8 | M4 | 8,0 | 2,5 | 2,0 |
| W320-4-10 | M4 | 10,0 | 2,5 | 2,0 |
| W320-4-12 | M4 | 12,0 | 2,5 | 2,0 |
| W320-4-16 | M4 | 16,0 | 2,5 | 2,0 |
| W320-5-8 | M5 | 8,0 | 3,0 | 2,5 |
| W320-5-10 | M5 | 10,0 | 3,0 | 2,5 |
| W320-5-12 | M5 | 12,0 | 3,0 | 2,5 |
| W320-5-16 | M5 | 16,0 | 3,0 | 2,5 |
| W320-5-20 | M5 | 20,0 | 3,0 | 2,5 |
| W320-6-10 | M6 | 10,8 | 4,0 | 3,0 |
| W320-6-12 | M6 | 12,8 | 4,0 | 3,0 |
| W320-6-16 | M6 | 16,8 | 4,0 | 3,0 |
| W320-6-20 | M6 | 20,8 | 4,0 | 3,0 |
| W320-6-25 | M6 | 25,8 | 4,0 | 3,0 |
| W320-8-10 | M8 | 11,2 | 5,5 | 4,0 |
| W320-8-12 | M8 | 13,2 | 5,5 | 4,0 |
| W320-8-16 | M8 | 17,2 | 5,5 | 4,0 |
| W320-8-20 | M8 | 21,2 | 5,5 | 4,0 |
| W320-8-25 | M8 | 26,2 | 5,5 | 4,0 |
| W320-8-30 | M8 | 31,2 | 5,5 | 4,0 |
| W320-10-12 | M10 | 13,7 | 7,0 | 5,0 |
| W320-10-16 | M10 | 17,7 | 7,0 | 5,0 |
| W320-10-20 | M10 | 21,7 | 7,0 | 5,0 |
| W320-10-25 | M10 | 26,7 | 7,0 | 5,0 |
| W320-12-16 | M12 | 18,0 | 8,5 | 6,0 |
| W320-12-20 | M12 | 22,0 | 8,5 | 6,0 |
| W320-12-25 | M12 | 27,0 | 8,5 | 6,0 |
| W320-12-30 | M12 | 32,0 | 8,5 | 6,0 |
| W320-12-40 | M12 | 42,0 | 8,5 | 6,0 |
| W320-16-20 | M16 | 23,3 | 12,0 | 8,0 |
| W320-16-25 | M16 | 28,3 | 12,0 | 8,0 |
| W320-16-35 | M16 | 38,3 | 12,0 | 8,0 |
| W320-16-50 | M16 | 53,3 | 12,0 | 8,0 |
| W320-20-30 | M20 | 34,2 | 15,0 | 10,0 |
| W320-20-40 | M20 | 44,2 | 15,0 | 10,0 |
| W320-20-50 | M20 | 54,2 | 15,0 | 10,0 |
| W320-20-60 | M20 | 64,2 | 15,0 | 10,0 |
Bajo pedido podemos suministrar versiones especiales.
