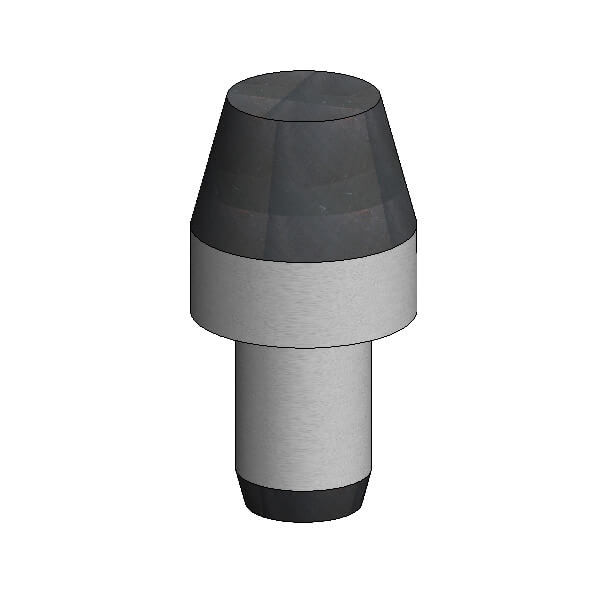

DIN 6321-B

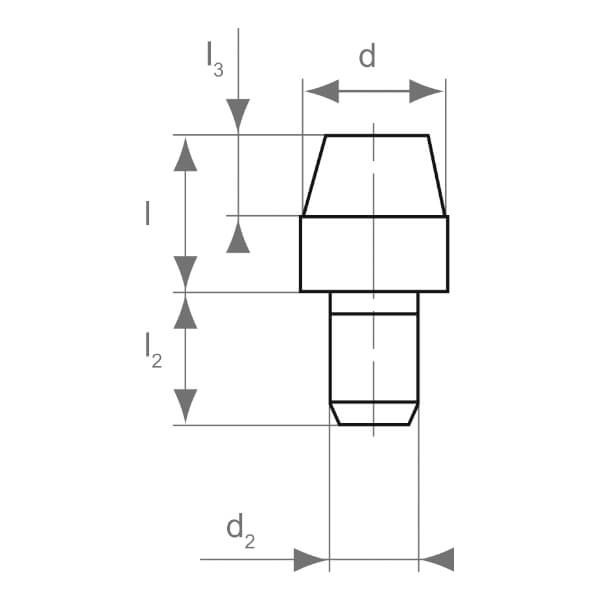

Ref. | d (g6) | l | d2 (n6) | l2 | l3 | |
---|---|---|---|---|---|---|
6321BC-6-7 | 6 | 7 | 4 | 6 | 4 | |
6321BC-8-10 | 8 | 10 | 6 | 9 | 6 | |
6321BC-10-10 | 10 | 10 | 6 | 9 | 6 | |
6321BC-12-10 | 12 | 10 | 6 | 9 | 6 | |
6321BC-16-13 | 16 | 13 | 8 | 12 | 8 | |
6321BC-20-15 | 20 | 15 | 12 | 18 | 9 | |
6321BC-25-15 | 25 | 15 | 12 | 18 | 9 |
Ref. | d (g6) | l | d2 (n6) | l2 | l3 | |
---|---|---|---|---|---|---|
6321BL-6-12 | 6 | 12 | 4 | 6 | 4 | |
6321BL-8-16 | 8 | 16 | 6 | 9 | 6 | |
6321BL-10-18 | 10 | 18 | 6 | 9 | 6 | |
6321BL-12-18 | 12 | 18 | 6 | 9 | 6 | |
6321BL-16-22 | 16 | 22 | 8 | 12 | 8 | |
6321BL-20-25 | 20 | 25 | 12 | 18 | 9 | |
6321BL-25-25 | 25 | 25 | 12 | 18 | 9 |
Corto
Largo
