E7560
E7560

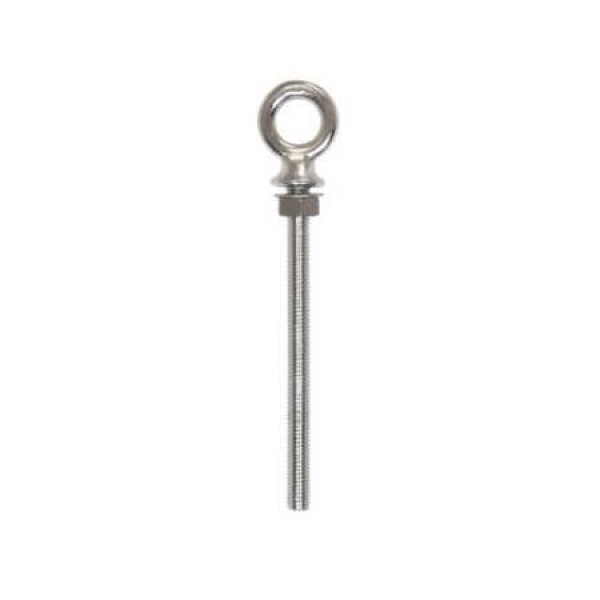

Bulon ojo de acero inoxidable
Acero AISI 316

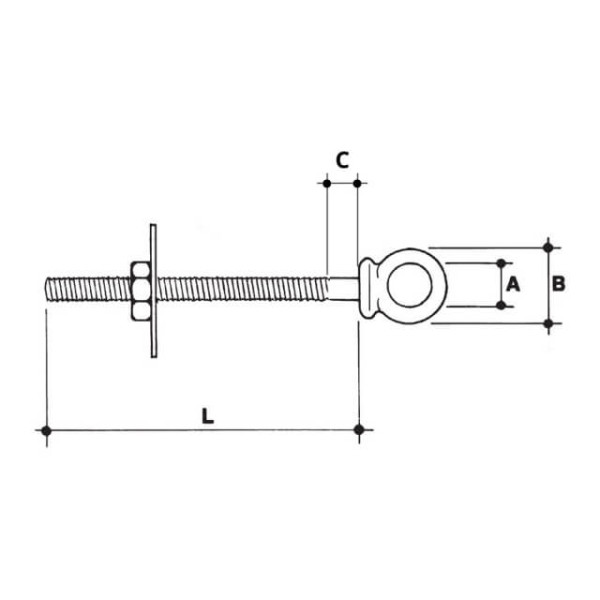

| Ref. | Medida | A | B | C | L | Kg |
|---|---|---|---|---|---|---|
| E7560-5-40 | M 5 x 40 | 12 | 22 | 4 | 40 | 0,02 |
| E7560-6-40 | M 6 x 40 | 12 | 22 | 4 | 40 | 0,02 |
| E7560-6-60 | M 6 x 60 | 12 | 22 | 6 | 60 | 0,03 |
| E7560-6-80 | M 6 x 80 | 12 | 22 | 8 | 80 | 0,03 |
| E7560-8-60 | M 8 x 60 | 14 | 27 | 6 | 60 | 0,05 |
| E7560-8-80 | M 8 x 80 | 14 | 27 | 8 | 80 | 0,06 |
| E7560-8-100 | M 8 x 100 | 14 | 27 | 10 | 100 | 0,06 |
| E7560-10-100 | M 10 x 100 | 16 | 31 | 10 | 100 | 0,1 |
| E7560-12-120 | M 12 x 120 | 18 | 36 | 12 | 120 | 0,16 |
Conforme a la directiva europea 2006/42/CE
